LENOVO SR650 V2 SILVER 4309Y 8C (1/2) 16GB (1/16) 2.5" HS(0/8) ONBOARD SATA 750W(1/2) 3YR 7Z73A03WAU
SKU
391920
Brand
MPN
7Z73A03WAU
Warranty
Standard Manufacturer's Warranty
$4,865.00
Buy Now And Earn 4865 Reward Points!
LENOVO SR650 V2 SILVER 4309Y 8C (1/2) 16GB (1/16) 2.5" HS(0/8) ONBOARD SATA 750W(1/2) 3YR

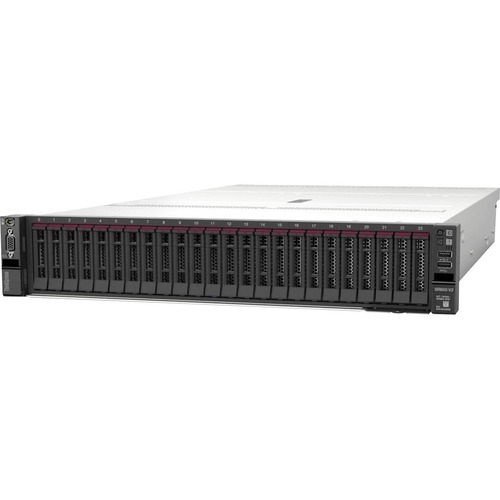

The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Guides & Documents
-
Brochure
-
Manual
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Storage
| Optical Drive Type | No |
Warranty
| Limited Warranty | 3 Year |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Controllers
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | 3 (x16, x8, x8) Gen4 |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 3.0 |
| RoHS | |
| EPEAT Bronze | |
| Energy Star | Yes |
Physical Characteristics
| Weight (Approximate) | 38.80 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7Z73A03WAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z73A03WAU |
| Product Name | ThinkSystem SR650 V2 7Z73A03WAU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 V2 |
| Brand Name | Lenovo |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 750 W |
Memory
| Error Checking | ECC |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 3.20 GHz |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XCC remote management |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Windows Server 2019 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Red Hat Enterprise Linux 8.2 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Windows Server 2016 | |
| Red Hat Enterprise Linux 7.9 |
Processor
| Cache | 12 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4309Y |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
