Lenovo ThinkSystem ST650 V2 1xIntel Xeon Silver 4309Y 8C 2.8GHz 105W 1x16GB 2Rx8 SW RD 1x750W XCC Enterprise 7Z74A00UAU
SKU
399811
Brand
MPN
7Z74A00UAU
Warranty
Standard Manufacturer's Warranty
$5,271.00
Buy Now And Earn 5271 Reward Points!
ThinkSystem ST650 V2 1xIntel Xeon Silver 4309Y 8C 2.8GHz 105W 1x16GB 2Rx8 SW RD 1x750W XCC Enterprise

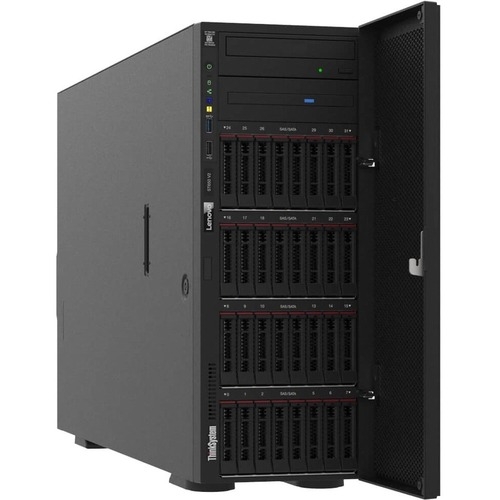

The Lenovo ThinkSystem ST650 V2 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Features
- 16 GB powerful memory for any computational task
- RAID provides data reliability, fault tolerance and improves overall performance
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- 750 W power supply unit (PSU) fulfils your system's power requirements
Network & Communication
| Ethernet Technology | 10 Gigabit Ethernet |
Warranty
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty, 9 x 5 next business day. Optional service upgrades are available. |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Controllers
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Physical Characteristics
| Weight (Approximate) | 39.28 kg |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 462 mm |
| Width | 175 mm |
| Depth | 734 mm |
I/O Expansions
| "Number of External 5.25"" Bays" | 2 |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 10 |
| Number of Total Expansion Slots | 9 |
| Hot Swappable Bays | Yes |
| PCI Express x8 (Gen 3.x) Slots | 1 |
| Number of SFF Bays | 8 |
| PCI Express Details | Up to 9 slots total (1 is optional) 4x PCIe 4.0 x16 slots Up to 4x PCIe x8 (3x Gen4, 1x Gen3) 1x PCIe 4.0 x4 slot |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Ubuntu 18.04 LTS | |
| Ubuntu 22.04 LTS | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.2 |
Memory
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 3.20 GHz |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 3.0 |
| CELP | |
| EPEAT Bronze | |
| GREENGUARD | |
| CECP | |
| Energy Star | Yes |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7Z74A00UAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z74A00UAU |
| Product Name | ThinkSystem ST650 V2 7Z74A00UAU Server |
| Product Line | ThinkSystem |
| Product Series | ST650 V2 |
| Brand Name | Lenovo |
Processor
| Cache | 12 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4309Y |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
