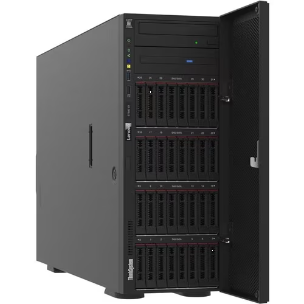

Lenovo ThinkSystem ST650 V2 1xIntel Xeon Silver 4310 12C 2.1GHz 120W 1x32GB 2Rx8 SW RD 1x750W XCC Enterprise 7Z74A01HAU
SKU
411075
Brand
MPN
7Z74A01HAU
Warranty
Standard Manufacturer's Warranty
$5,320.00
Buy Now And Earn 5320 Reward Points!
ThinkSystem ST650 V2 1xIntel Xeon Silver 4310 12C 2.1GHz 120W 1x32GB 2Rx8 SW RD 1x750W XCC Enterprise
The Lenovo ThinkSystem ST650 V2 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
|
Features
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) included
- With 32 GB memory, you can multitask between applications smoothly
Network & Communication
| Ethernet Technology | 10 Gigabit Ethernet |
Warranty
| Additional Warranty Information | Three-year or one-year customer-replaceable unit and onsite limited warranty, 9 x 5 next business day. Optional service upgrades are available. |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Controllers
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China Energy Conservation Program (CECP) |
| Energy Star | Yes |
Physical Characteristics
| Weight (Approximate) | 46.23 kg |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 462 mm |
| Width | 175 mm |
| Depth | 734 mm |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XCC Enterprise |
Memory
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 3.20 GHz |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7Z74A01HAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z74A01HAU |
| Product Name | ThinkSystem ST650 V2 7Z74A01HAU Server |
| Product Line | ThinkSystem |
| Product Series | ST650 V2 |
| Brand Name | Lenovo |
Processor
| Cache | 18 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
I/O Expansions
| "Number of External 5.25"" Bays" | 2 |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 10 |
| Number of Media Drive Bays | 2 |
| Number of Total Expansion Slots | 9 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 4 |
| PCI Express x8 (Gen 3.x) Slots | 5 |
| Number of SFF Bays | 8 |
| PCI Express Details | Up to nine PCIe slots, eight of which are PCIe 4.0 and are standard. Up to nine PCIe slots, eight of which are PCIe 4.0 and are standard. |
Operating System
| Operating System Supported | Red Hat Enterprise Linux 8.2 |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 7.9 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 12 SP5 |
