DESCRIPTION

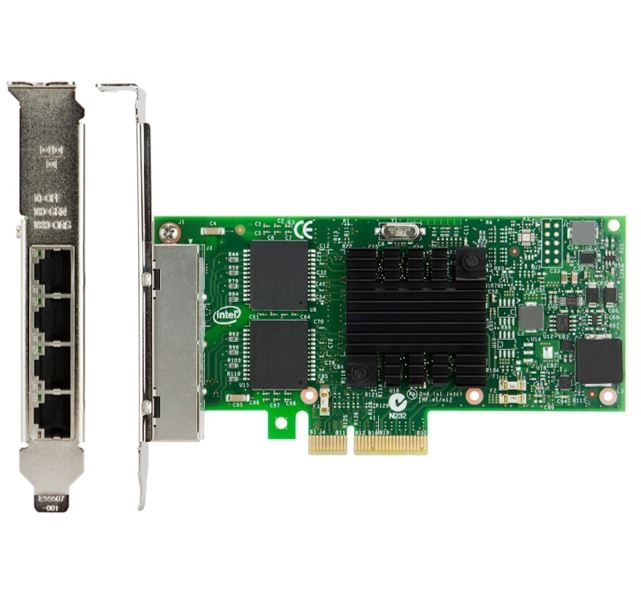

"I350-T4 Adapter features:

• Four 10/100/1000 copper ports with RJ45 connectors
• Based on Intel I350 ASIC
• Line rate with IEEE 802.3 auto negotiation for 1000/100/10 Base-T Ethernet
• Host interface: PCIe 2.0 x4 host interface
• Form factor: Standard PCI-e low profile card form factor
• Power dissipation: 5.9 W typical

Performance features:

• TCP/UDP, IPv4 checksum offloads, and extended Tx descriptors
• IPv6 support for IP/TCP and IP/UDP receive checksum offloads
• Tx TCP segmentation offload (IPv4 and IPv6)
• Transmit segmentation offload
• Interrupt throttling control
• Message Signal Interrupt (MSI) support
• Message Signal Interrupt Extension (MSI-X) support
• Intelligent interrupt generation
• RSS for Windows
• Scalable I/O for Linux
• Low-latency interrupts
• Header/Packet Data Split in Receive
• PCIe v2.1 TLP processing hint requester
• Descriptor ring management hardware for transmit and receive

  For additional information including Ethernet and power features, please refer to the Product Guide using the link below.

  Includes adapter with attached full-height (3U) bracket, and a low-profile (2U) bracket that can be substituted if needed.

  Product Guide"
