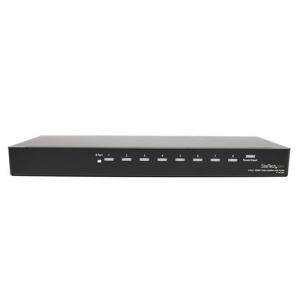

Startech 8 Port High Speed Hdmi Video Splitter W/ Audio - Rack Mountable - Hdmi Distribution System
No Longer Available
QUICK OVERVIEW
| Split an HDMI® audio and video signal to eight displays simultaneously. The ST128HDMI2 8-Port High Speed HDMI® Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality. Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel. A perfect addition to virtually any application requiring the high quality video, the ST128HDMI2 HDMI splitter is easy to install as a standalone or rack-mounted device using the included brackets and provides flawless, distortion-free digital video. |
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Female |
| HDMI (19 pin) Female | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Female |
| HDMI (19 pin) Female | |
| Environmental | |
| Humidity | 0%~80% |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cabling | HDMI |
| Daisy-Chain | Yes |
| Industry Standards | High Speed HDMI, HDCP, EDID |
| Ports | 8 |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | Green Port signal indicator |
| Power (Green) / Input Signal (Blue) | |
| Packaging Information | |
| Shipping (Package) Weight | 3278 g [115.7 oz] |
| Performance | |
| Maximum Cable Length | 5000 mm [196.9 in] |
| Maximum Digital Resolutions | HDTV 1080p / PC 1920x1200 |
| Supported Resolutions | 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 45 mm [1.8 in] |
| Product Length | 440 mm [17.3 in] |
| Product Weight | 2182 g [77 oz] |
| Product Width | 183 mm [7.2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 800mA |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 10.2 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | HDMI distribution amplifier |
| instruction manual | |
| mounting hardware and screw kit | |
| universal power adapter (NA / EU / UK / AU) | |
The ST128HDMI2 8-Port High Speed HDMI® Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
A perfect addition to virtually any application requiring the high quality video, the ST128HDMI2 HDMI splitter is easy to install as a standalone or rack-mounted device using the included brackets and provides flawless, distortion-free digital video.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
