OPTEX CEILING MOUNT PIR 18M 360DEG -5YRS SX-360Z
SKU
434079
Brand
MPN
8063
Warranty
Standard Manufacturer's Warranty
$167.00
Buy Now And Earn 167 Reward Points!
18m 360 degree ceiling-mount detector, with its unique zoom function and highly dense, triple-element detection pattern, provides unsurpassed detection performance at any ceiling height up to 5 meters.
Features:

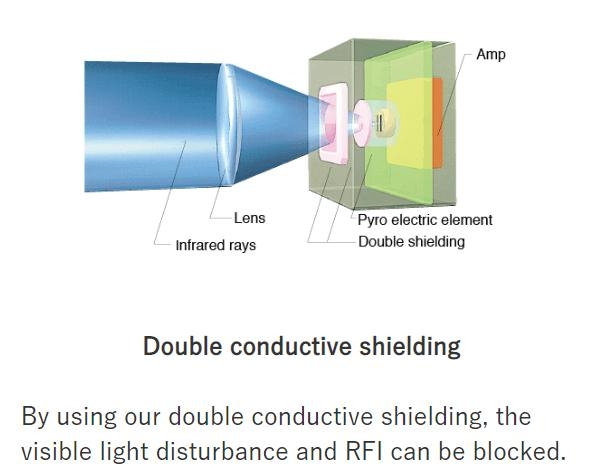

- Double conductive shielding
- Multi-focus optics
- Highly dense coverage (276 zones)
- Zoom function/ pattern adjustment
- Temperature protection
- Noise reduction circuit
- LED remote control terminal
| Model | SX-360Z |
| PIR coverage | Φ18 m 360゜zoom |
| Detection zones | 276 zones |
| Sensitivity | 1 6°C at 0 6 m/sec at 2 4 m mounting height |
| Detectable speed | 0 3 to 1 8 m/sec |
| Power supply | 6 to 18 VDC |
| Current consumption | 18 mA (max ) |
| Alarm period | 2 0 ±0 5 sec |
| Alarm output | N C 28 VDC 0 2 A max |
| Tamper switch | N C, opens when cover is removed : 30 VDC 0 1 A max |
| Pulse count | 20 ±5 sec 1, 2 or 4 |
| Warm-up period | Approx 20 sec (LED blinks) |
| Operating temperature | -20 to +50°C |
| Environmental humidity | 95% max |
| RF interference | No Alarm 30 V/m |
| Mounting height | 2.4 to 5m |
| Weight | 224 g |
| Dimensions (H x W x D) | Φ128 mm x 67 - 73 mm |
OPTEX CEILING MOUNT PIR 18M 360DEG -5YRS
