AJAX KEYPAD TOUCHSCREEN FIBRA WHITE 2YR 81718.226.WH1

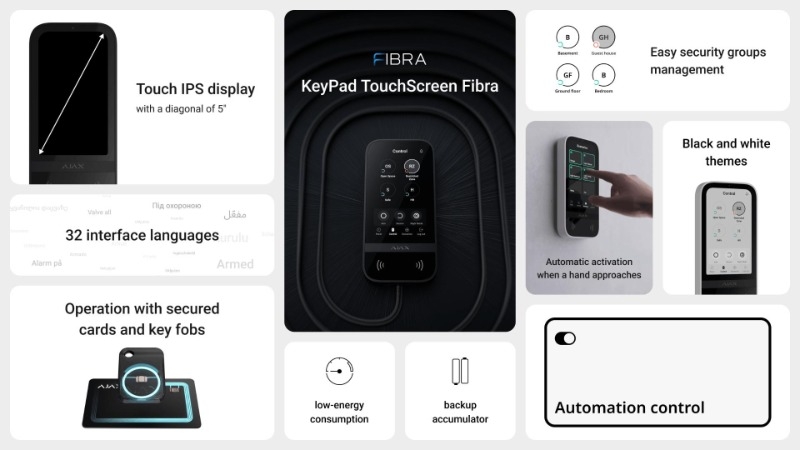

Convenient Ajax system control
KeyPad TouchScreen combines security and automation device management. An intuitive Ajax app-like interface and multiple language options make it an easy-to-use solution. The big display, DESFire® and BLE technologies, and code options ensure a secure and efficient experience.
Three missions united in one device:
* Security Management
Easily manage security for multiple groups. Users can view what's armed and make changes with just one touch, whether it's securing one group, multiple groups, activating night mode, or arming the entire facility. It's all simple and straightforward.
* Automation devices control
The keypad has a separate control tab for automation devices, with the capacity for up to 6 buttons. Groups simplify the process of controlling multiple automation devices: switches, relays, sockets, and others. For instance, all LightSwitch switches can be assigned to one button and easily turn off all the lights in the entire house when users go to bed.
* Sound and malfunction notifications
Stay always informed with the built-in buzzer, receiving notifications for alarms, door openings, and entry/exit delays. PRO can effortlessly adjust the sound volume on a smartphone or PC. Remain one step ahead with the keypad's malfunction notifications during arming.
Three authentication methods
There are three easy ways to control the keypad, giving users the flexibility to choose what suits them best. All events display in the feed, including user activity and authentication details.
* Smartphone
Control the keypad via smartphone with an Ajax app. Access rights are only granted to users approved by the admin
* Pass card and Tag key fob
When someone uses the Pass card or the Tag key fob, it’s logged in the event feed of the Ajax app. The admin can revoke or restrict the access rights of the contactless access device at any time.
* Code
KeyPad TouchScreen supports the following code types:
# keypad code (one per keypad)
# personal code (individual for each user)
# code for an unregistered person
| Display | 5", IPS Matrix, 480 x 854 Resolution |
| Sensor type | Capacitive touch |
| Backlight lifetime | 30,000 hours - Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
| User interface | Dark and Light modes |
| Key features | Panic buttons, Control, Contactless access, Arm without code, Group managment, Scenario managment, Auto screen wakeup, Remote firmware update |
| Control | Codes, Pass codes, Tag key fobs, Smartphone (Bluetooth) |
| Access via DESFire® | EV1, EV2 - The technology is based on the ISO 14443 international standard and combines 128-bit encryption and copy protection. |
| Maximum codes | up to 50 personal codes. One code per each user. |
| Keypad codes | One code per KeyPad. |
| Duress codes | up to 500 personal codes. One code per each user. |
| Keypad Duress codes | One code per KeyPad. |
| Codes for unregistered people | up to 50 personal codes. For people who are not registered in the system. |
| Sabotage protection | Protection against code guessing. KeyPad locks for 3–180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. |
| Power supply | Fibra line power supply (7−30 V⎓, up to 54.6 mA) |
| Line connection | 4-core cable |
| Fibra line length | up to 2,000 meters (When using the U/UTP cat.5 twisted pair.) |
| Backup batteries | 2 × LTO AA, Pre-installed. |
| External power supply | 10.5–14 V⎓, from 0.5 A, The recommended voltage of the power supply is 12 V⎓. External power supply is not included. It is needed for the Always Active Display mode. |
| Dimensions | 171 × 82 × 28 mm |
| Weight | 327 g |
| Operating temperature range | from -10°C to +40°C |
| Operating humidity | up to 75% |
| Warranty | 24 months |
