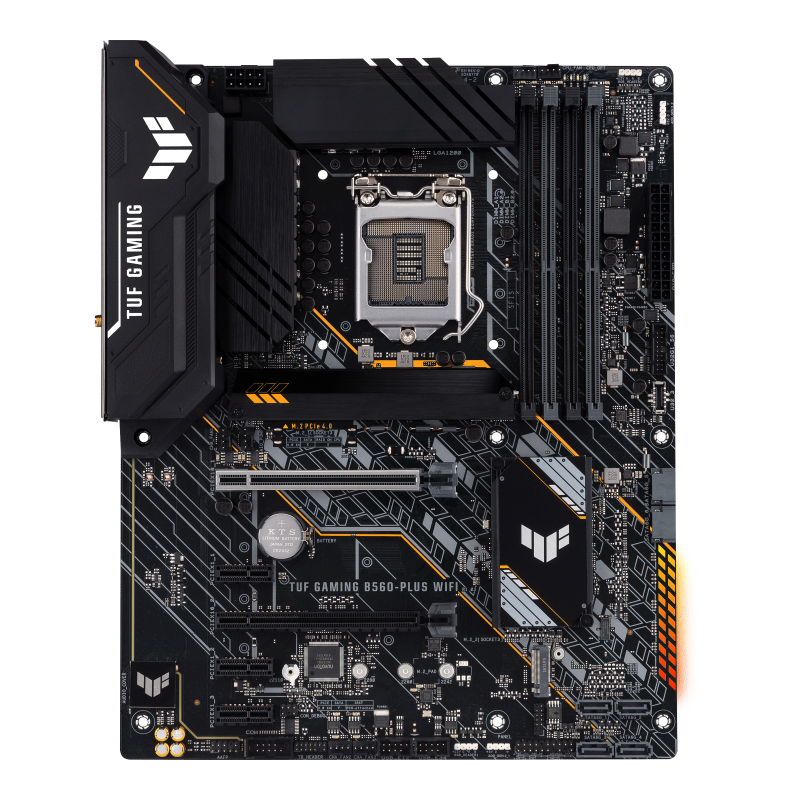

Asus Intel B560 (LGA 1200) ATX motherboard, PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0,
SKU
370397
Brand
MPN
90MB1740-M0UAY0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $266.00 Regular Price $310.00
Buy Now And Earn 266 Reward Points!
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" |
| Chipset | Intel® B560 Chipset |
| Form Factor | ATX 30.5cm x 24.4cm |
| I/O Connectors | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1x Type-C®) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Integrated CPU Graphics | 1 x DisplayPort 1.4 1 x HDMI™ 1.4 / 2.0 |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Memory/Type/Bus/Max. | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| PCI Slots | Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot(s)** - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 | Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots |
| Processor Support | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Raid | |
| RAM Type/Bus/Max. | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Socket | LGA1200 |
| Storage Interface | Intel®11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | Intel® B560 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
| Warranty | 3 Years |
| Weight | |
| Accessories | Cables: 2 x SATA 6Gb/s cables | Miscellaneous: 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x TUF Gaming sticker | Installation Media: 1 x Support DVD | Documentation: 1 x TUF Certification card 1 x User manual |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows® 10 64-bit |
| Wireless & Bluetooth | Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later |
Intel B560 (LGA 1200) ATX motherboard, PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0,
