  • ASUS Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI, DisplayPort, Intel 2.5 Gb Ethernet 90MB18L0-M0UAY0

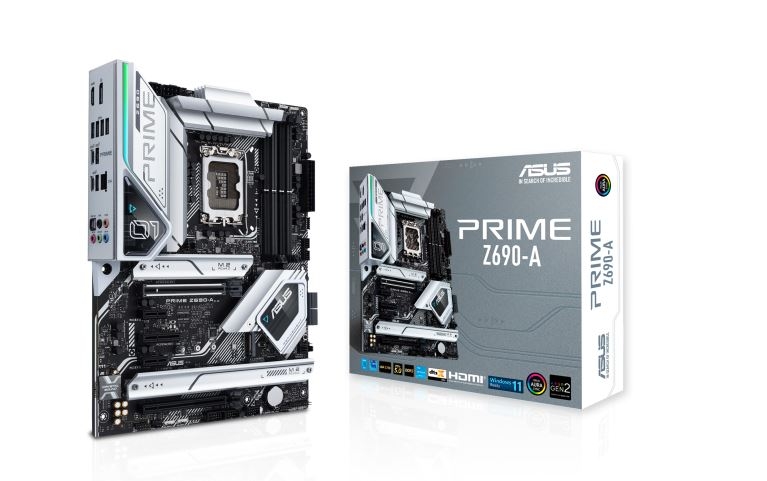

main product photo

ASUS Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI, DisplayPort, Intel 2.5 Gb Ethernet 90MB18L0-M0UAY0

SKU
380101
Brand
Asus
Manufacturer Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI®, DisplayPort™, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel processors
  • Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
  • AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
  • Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
  • Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2
Specifications
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
Chipset Z690
Form Factor ATX 30.5cm x 24.4cm
I/O Connectors 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Integrated CPU Graphics 1 x DisplayPort** 1 x HDMI® port***, ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
LAN 1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Memory/Type/Bus/Max. 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
PCI Slots Intel®12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots
Processor Support Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Raid NVMe RAID 0/1/5, SATA RAID 0/1/5/10
RAM Type/Bus/Max. 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
Socket Intel® Socket LGA1700 for 12th Gen Intel® Core™
Storage Interface Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Warranty 3 Years warranty
Weight 1.9Kgs
ASUS Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI, DisplayPort, Intel 2.5 Gb Ethernet
