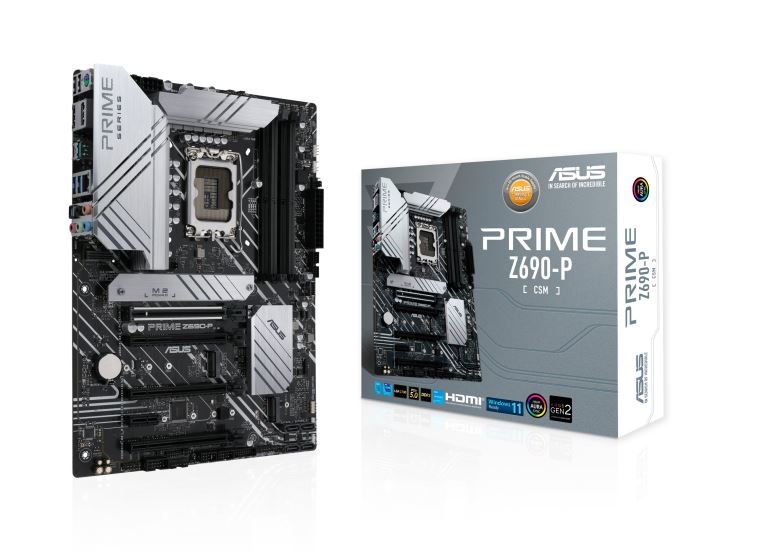

ASUS Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI, DisplayPort, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 PRIME-Z690-P-CSM
No Longer Available
Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting
· Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
· Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connectors, alloy chokes and durable capacitors for stable power delivery
· Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
· ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
· Next-gen connectivity: DDR5, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
· ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Chipset | Z690 |
| Form Factor | ATX 30.5cm x 23.4cm |
| I/O Connectors | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI®***, ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1. |
| LAN | 1 x Realtek 2.5Gb Ethernet LANGuard |
| Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| PCI Slots | Intel® 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Raid | NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Socket | Intel® Socket LGA1700 for 12th Gen Intel® Core™ |
| Storage Interface | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Warranty | 3 Years warranty |
| Weight | 3Kgs |
