Asus ASUS, TUF-GAMING-B760M-PLUS-WIFI-II, INTEL, INTEL 12 to 13th, LGA1700, 4x DDR5, 192G, Upto 7200+, PCIe 5 - 1x16 TUF-GAMING-B760M-PLUS-WIFI-II

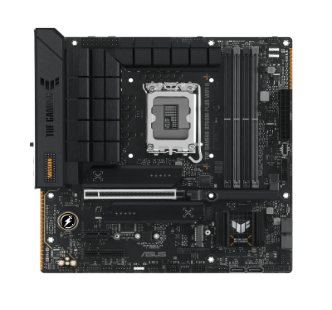

TUF GAMING B760M-PLUS WIFI II
TUF GAMING B760M-PLUS WIFI II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | Intel® B760 Chipset |
| Form Factor | mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| I/O Connectors | 1 x USB 20Gbps port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port |
| Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMI™port |
| LAN | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| PCI Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen): 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset: 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot |
| Processor Support | Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II |
| Socket | Intel® Socket LGA1700 |
| Storage Interface | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports |
| Warranty | 3 years |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3 |
