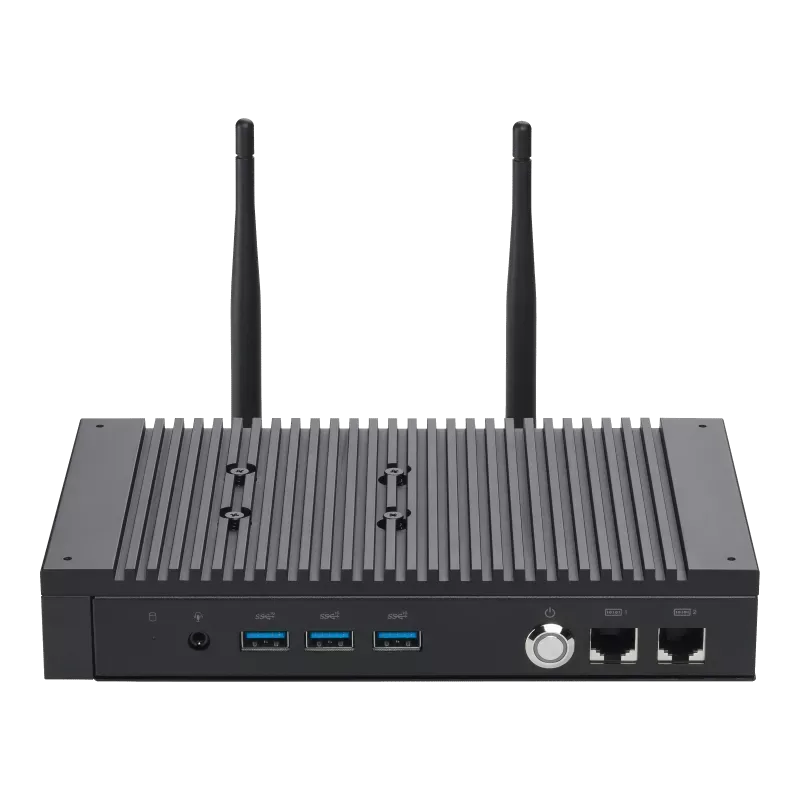

ASUS PL64 MINI PC, I7-1255U, DDR4(0/2), M.2(0/2), WL, FANLESS, 3YR RTB PL64-I7BAREBONES
Ultraslim computer with 12th Gen Intel® Core™ processors, fan-less chassis for 15W CPU, 4K triple-display support, dual LAN, dual COM ports, PCIe® Gen 4 SSD, WiFi 6E, 50°C operational ambient temperature Powered by Intel® 12th Generation Core™ processors Fan-less design for 15-watt CPU while minimizing noise and dust ingress 4K triple-display support via HDMI with EDID emulation and virtual display Slim and compact, measuring just 199.7 x 119.7 x 33.9 mm Comprehensive I/O ports including dual COM, dual LAN with 1x 2.5G and up to five USB ports Support up to up to 2x M.2 PCIe Gen4x4 SSD Integrated Wi-Fi 6E and Bluetooth for easy cordless connections Provide plenty of mounting solution including wall mount, din rail, VESA and rack mount Support up to 50°C operational ambient temperature 24/7 reliability — Extensively tested to ensure long-term dependability
| CPU | i7-1255U |
| Chipset | Integrated |
| Graphics | Intel® Iris® Xe Graphics or Intel® UHD Graphics for 12th Gen Intel® Processors |
| Wireless Data Network | Wi-Fi 6E, Bluetooth 5.2, 2*2 Intel® Wi-Fi 6 AX201 (Gig+) (2x2) + BT5 w/o Wi-Fi |
| LAN | 10/100/1000/2500 Mbps, 2.5G Intel® LAN 10/100/1000 Mbps, 1G Intel® LAN |
| Audio | Realtek® ALC3251 HD Audio CODEC |
| Side(Front) I/O Ports | 3 x USB 3.2 Gen2, 2 x COM (RJ50; support RS232, 422, 485 ) , 1 x Audio Jack (Line out/ Mic in/ Headphone out), 2 x USB 3.2 Gen1, 1 x Kensington lock |
| Back I/O Ports | 3 x HDMI, 1 x Intel (RJ45) 2.5G LAN, 1 x Intel (RJ45) 1G LAN, 1 x EDID reset , 2 x Antenna Jack, 1 x DC-in |
| Speaker | No |
| Power Supply | 19Vdc, 3.42A, 65W Power Adapter |
| Dimensions (W x D x H) | 199.7mm x 119.7mm x 33.9mm |
| Weight | 1.0KG |
| Color | ECO Black, non-logo ECO Black |
| Certificates | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
