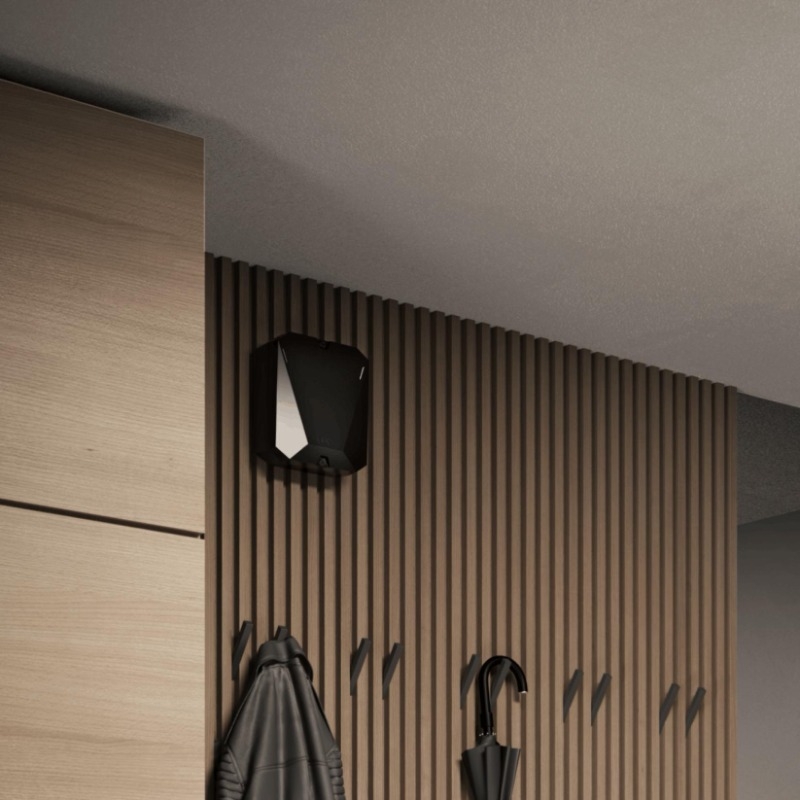

Integration module for Ajax MultiTransmitter Fibra security system

MultiTransmitter Fibra is a module for integrating third-party wired devices into the Ajax security system.
The device has 18 zones for connecting third-party sensors. MultiTransmitter Fibra supports NC, NO, EOL, 2EOL and 3EOL devices.
The MultiTransmitter Fibra integration module works with the Hub Hybrid control panel.
The device works as part of the Ajax security system. Information is exchanged with the control panel using the secure Fibra protocol.
The range of wired communication between the integration module and the control panel is up to 2 kilometers when connected with a U/UTP cat.5 twisted-pair cable.
The module for integrating wired devices MultiTransmitter Fibra is protected from dismantling by two tampers. When you try to remove the device from the mount, the module will send an alarm to the system central (hub).
The device is powered by 110–240 V~. Can be powered by a 12V backup battery⎓. Can provide 10.5-15V⎓ power for connected sensors.

The principle of operation of the module for integrating third-party wired devices for signaling MultiTransmitter Fibra

MultiTransmitter Fibra is designed to integrate third-party wired sensors and security devices into the Ajax security system. Data from devices connected to the system (faults, alarms and events) is received by the integration module via a wired connection.
After the message has been delivered, the integration module transmits it to the Hub Hybrid control panel using the Fibra wired data transfer protocol. The control panel, in turn, informs users of the security system and the security company about the incident.
Use the module for integrating third-party wired devices to the Ajax security system to connect indoor and outdoor motion sensors, panic and medical buttons, as well as vibration, opening, glass breaking, fire detection sensors, etc.
The MultiTransmitter Fibra 3rd Party Alarm Integration Module has 18 wired zones. Multiple devices can be connected to one zone.
The number of connected devices depends on the power consumption of each of them. The maximum consumption of all connected sensors or other devices to all zones is 1 A.

Fibra data transfer protocol

The MultiTransmitter Fibra integration module uses Fibra technology to communicate with the security control panel.
This is a wired data transfer protocol that provides fast and reliable two-way communication between the control panel and connected devices.
Using the bus connection method, the Fibra protocol delivers event and alarm messages instantly, even if 100 devices are connected to the security system.

The Fibra protocol secures devices with floating-key block encryption and verifies all communications to prevent device tampering and tampering. The protocol provides for constant polling of sensors and other devices of the security system by the control panel at a specified frequency. This way, you can control the level of communication and see the status of the system devices in the Ajax application in real time.
