INTEL NUC 13 EXTREME KIT, i9-13900K DDR5 (0/2) ,M.2 (0/3), WIFI 6E, NO PWR CORD,3YR 99C515
No Longer Available

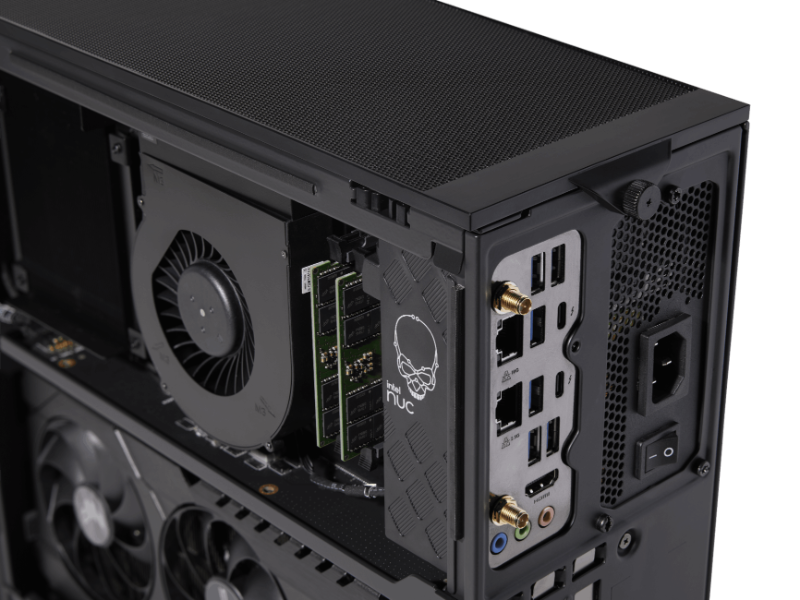

This changes everything. The Intel® NUC 13 Extreme pairs off-the-charts performance and never-before-seen features with a streamlined thermal design.
The modular Intel® NUC 13 Extreme Compute Element features unlocked 13th Gen Intel® Core™ i9/i7/i5 processors at 125W—nearly twice the
Base Power of the previous generation—to create the most powerful Intel NUC ever.
Gamers can take advantage of new triple-slot 12” graphics cards, dual-channel DDR5 memory supporting speeds of 4800+ MHz, and Intel® Killer™ Wi-Fi 6E—the first time those features have been available on an Intel NUC Mini PC. With the new modern design, airflow is optimized to
minimize noise and throttling during hours of intense gameplay.
This small-footprint powerhouse is packed with the performance, innovative features, and connectivity gamers want to take their gameplay to the next level, all backed by a three-year Intel warranty.
| Product Collection | Intel® NUC Kit with 13th Generation Intel® Core™ Processors |
| Code Name | Products formerly Raptor Canyon |
| Status | Launched |
| Launch Date | Q4'22 |
| Supported Operating Systems | Windows 11 | 64-bit* |
| Board Number | NUC13SBBi9 |
| Board Form Factor | PCIe |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| # of Internal Drives Supported | 5 |
| TDP | 125 W |
| Board Chipset | Intel® Z690 Chipset |
| Processor Included | Intel® Core™ i9-13900K Processor (36M Cache | up to 5.80 GHz) |
| Total Cores | 24 |
| Total Threads | 32 |
| Lithography | Intel 7 |
| Max Turbo Frequency | 5.80 GHz |
| Warranty Period | 3 yrs |
| Supplemental Information | N/A |
| Embedded Options Available | No |
| Memory & Storage | N/A |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR5 SODIMM |
| Max # of Memory Channels | 2 |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‡ | No |
| Processor Graphics | N/A |
| Integrated Graphics ‡ | Yes |
| Graphics Output | 2x Thunderbolt 4 | HDMI 2.1 TMDS compatible (4K60) |
| # of Displays Supported ‡ | 3 |
| Discrete Graphics | Supports PCIe x16 Gen5 3-slot wide GPU |
| Expansion Options | N/A |
| PCI Express Revision | Gen5 | Gen4 |
| PCI Express Configurations ‡ | M.2 PCIe X4 Gen4 slots (CPU) | 2x M.2 PCIe X4 Gen4 slots (PCH); Triple-wide PCIe X16 Gen5 (CPU) slot | 12" max card length |
| M 2 Card Slot (wireless) | Killer™ Wi-Fi 6E AX1690i |
| M 2 Card Slot (storage) | 2x via PCH + 1x via CPU (NVMe) |
| I/O Specifications | N/A |
| # of USB Ports | 11 |
| USB Configuration | Rear: 6x USB 3.2g2 | 2x TB4 (USB4); Front: 2x USB 3.2g1 Type-A | USB 3.2g2x2 Type-C |
| USB Revision | 3.2 Gen1 | Gen2 | Gen2x2 | USB4 |
| Total # of SATA Ports | 4 |
| Max # of SATA 6 0 Gb/s Ports | 4 |
| RAID Configuration | RAID-0 or RAID-1 |
| Audio (back channel + front channel) | (R) 7.1 digital | 3x 3.5mm + (F) 3.5mm |
| Integrated LAN | 10GbE (AQC113) + Intel® i226-V |
| Integrated Wireless‡ | Intel® Killer(tm) Wi-Fi 6E AX1690 (i/s) |
| Integrated Bluetooth | Yes |
| Additional Headers | FRONT_PANEL |
| # of Thunderbolt™ Ports | 2x Thunderbolt™ 4 |
| Package Specifications | N/A |
| Chassis Dimensions | 337 x 318 x 129mm |
| Advanced Technologies | N/A |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® Rapid Storage Technology | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Security & Reliability | N/A |
| Intel® AES New Instructions | Yes |
