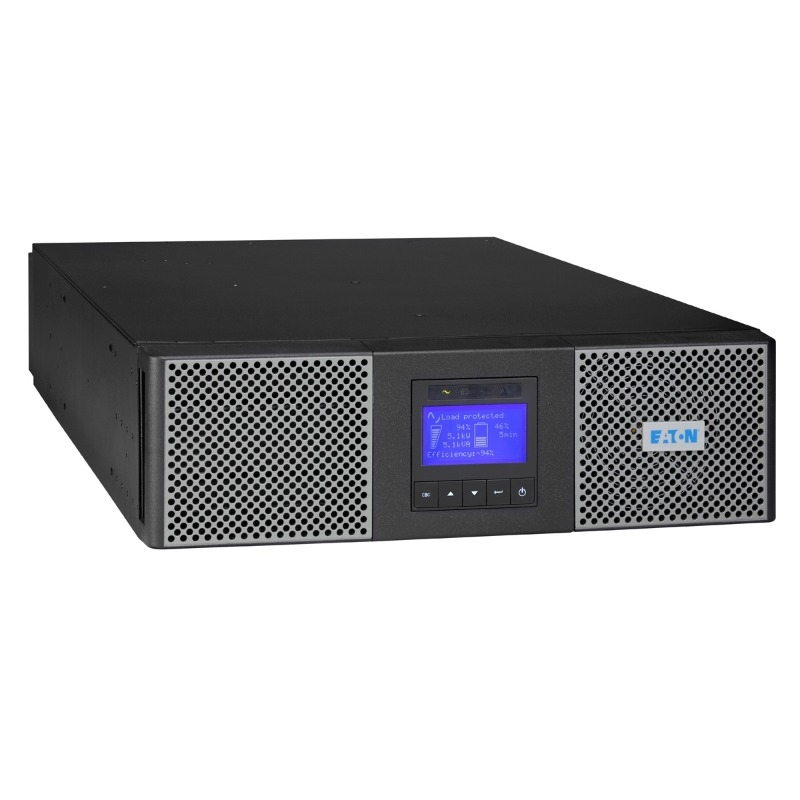

EATON 9PX 8KVA 1:1 UPM (POWER MODULE ONLY, NO BATTS) RACK/TOWER, NO RAIL KIT, 3YR 9PX8KIPM
SKU
413884
Brand
MPN
9PX8KIPM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$7,428.00
Buy Now And Earn 7428 Reward Points!
Eaton 9PX 8kVA 1:1 UPM (Power module only, no internal batteries, add 1 x 9PXEBM240 minimum to make ups) Rack/Tower, no rail kits - add 9RK for rack mounting to both UPS and EBM, 3YR
| VA/Watts | 8000/7200 |
| Outlet Qty & Type | Hardwired ; Hardwired + (4) IEC C19 16A with optional MBP |
| Input | Hardwired |
| Cables | USB ; Serial ; Cable retention bracket (6kVA) |
| EBM | Yes (12) (with supercharger module) |
| Form | Rack/Tower |
| Includes network card | No |
| Communication | USB/RELAY/RS232/Minislot DB9 (4) Dry Contacts / DB15 Parallel |
| Warranty | 3 years |
| Applications | CCTV, Motors, Servers, Storage |
| Weight (kg) | 19 |
| Input voltage (V) | 200/208/220/230/240/250 |
| Output voltage (V) | 200/208/220/230/240/250 |
| Input voltage (V) range | 176-276 (100-276 with derating) |
| Width (mm) | 440 |
| Depth (mm) | 700 |
| Height (mm) | 130 |
EATON 9PX 8KVA 1:1 UPM (POWER MODULE ONLY, NO BATTS) RACK/TOWER, NO RAIL KIT, 3YR
