Netgear Ac Wifi Business Access Point (wac505) With Netgear Insight App For Easy Management
No Longer Available
QUICK OVERVIEW
WAC505

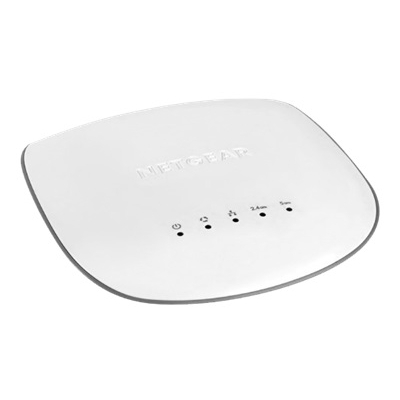

Insight Managed Smart Cloud Wireless Access Point (WAC505)
One-touch network visibility. Anywhere.
The NETGEAR® Insight Managed Wireless Access Point WAC505 delivers high performance WiFi and high client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC505 is managed by NETGEAR Insight app, for a more intuitive and innovative support, with no need for extra management hardware. The WAC505 features Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.2 Gbps, option to configure as or Access Point modes, and comes with two Ethernet ports, a Power-over-Ethernet (PoE) 1Gb LAN port and a WAN port. WAC505 comes with market-leading 5-year hardware warranty.
One-touch wireless connectivity & management with NETGEAR Insight app
- Instant in-app discovery & set-up
- Local and Cloud monitoring and management
- Remote access and multi-device configuration
- No additional Cloud controller, appliance, network manager, or PC/server is necessary
- QR code initial configuration for instant installation
Superior performance with 802.11ac Wave 2
- Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges
- Maximum performance with multi-gigabit throughput (up to 1.2 Gbps)
- Multi-User MIMO enable concurrent wireless transmit and receive with multiple clients
- Improves coverage for multiple users in dense environment
Flexible deployment with Power over Ethernet and accessories
- Standard based 802.3af Power over Ethernet (PoE)
- Access Point mode for multiple WAC505 for mid-size office environment
- Ceiling and wall mount for ease of placement
Product Number
WAC505
Product Thumbnail
Standards
IEEE 802.11ac specification
IEEE 802.11ac 2.0 specification
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Frequency Band
2.4GHz and 5GHz concurrent operation
Maximum Theoretical Throughput
300Mbps (2.4GHz)
867Mbps (5GHz)
Maximum Number of Clients
200
Deployment options
Standalone
Netgear Insight app management
Access Point
Internal Antenna Gain: 3 dBi (2.4 GHz) / 6 dBi (5 GHz)
Advanced Wireless
WDS Point-to-point wireless bridge mode
WDS Point-to-multipoint wireless bridge mode
Security
WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
MAC Address filtering
4 BSSIDs per Radio
MAC ACL
Yes
Routing Function
Yes
802.11e WMM
(Wireless multimedia mode) for QoS
Simultaneous Bridge/Client Association
Yes
Power
Power adapter (not included): 12V DC, 2.5A;
Power consumption: 9.3W
Physical Specifications
Dimensions (W x D x H): 6.89 x 6.49 x 1.38in (175 x 165 x 35mm)
Weight: 0.53lb (256g)
Mounting
Desktop standable
Ceiling and wall mountable (mount included)
Physical Interfaces
One 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink® (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE)
LEDs
Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz
Default Reset
Yes
Operating Temperature
32° to 104°F (0° to 40°C)
Storage Temperature
-4° to 158°F (-20° to 70°C)
Operating Relative Humidity
10-90%
Storage Humidity
5-95%
MTBF
@ 25°C > 978,210 Hours
Package Contents
Insight Managed Smart Cloud Wireless Access Point (WAC505)
Safety Certification
FCC, CE (EN60950)
Optional Support
PMB0351: 5 years OnCall 24x7
PMB0331: 3 years OnCall 24x7
PMB0311: 1 year OnCall 24x7
Product Ordering Information
WAC505-100NAS
WAC505-10000S
