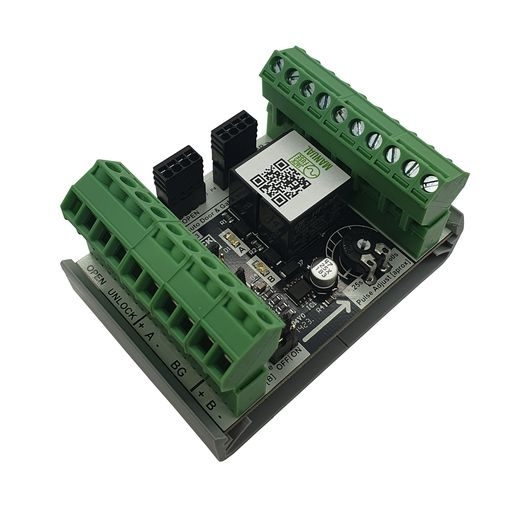

JACKFUSE AUTOMATIC DOOR OR GATE INTERFACE MODULE QTY 1 - 1YR ADI
Provides an interface between access control systems, fire indication panels and automatic doors/gates.
An adjustable delay can be implemented to provide door/gate/lock sequencing
Features
- Two interface relays with LED indicators
- EOL resistor sockets for 2 x door input supervision
- Built in pulse timer - 250ms to 60s
- 45° pluggable terminals
- Break glass input
- Clear division between trades (EACS & Door contractors)
- Multiple operation modes
- Quick SnapTrack™ mounting
Applications
- Interfacing of electronic access control systems to:
o Automatic sliding doors
o Motorised gates
o Speed gates
o Powered swing doors
o Boom gates
- Timed sequencing of access control events
- Controlling automatic door day/open modes from one contact
- Connecting fire and break glass signals to automatic doors
| Maximum conductor size | 2.5mm2 |
| Max current per output | 3A |
| Voltage range A input | 11-28VDC (Typical 13.8-27.6) |
| Voltage range B input | 14VDC (Typical 13.8) |
| Pulse timer range | 250ms-60s (Approximately) |
| Dimensions | 55 L X 82 W X 43 H (mm) |
| RoHS | Compliant |
| AUS/NZ (RMC-EMC) 61000 6 3 | Compliant |
| Primary materials | PVC, fiberglass, Polyamide 66 |
| Country of origin | China |
