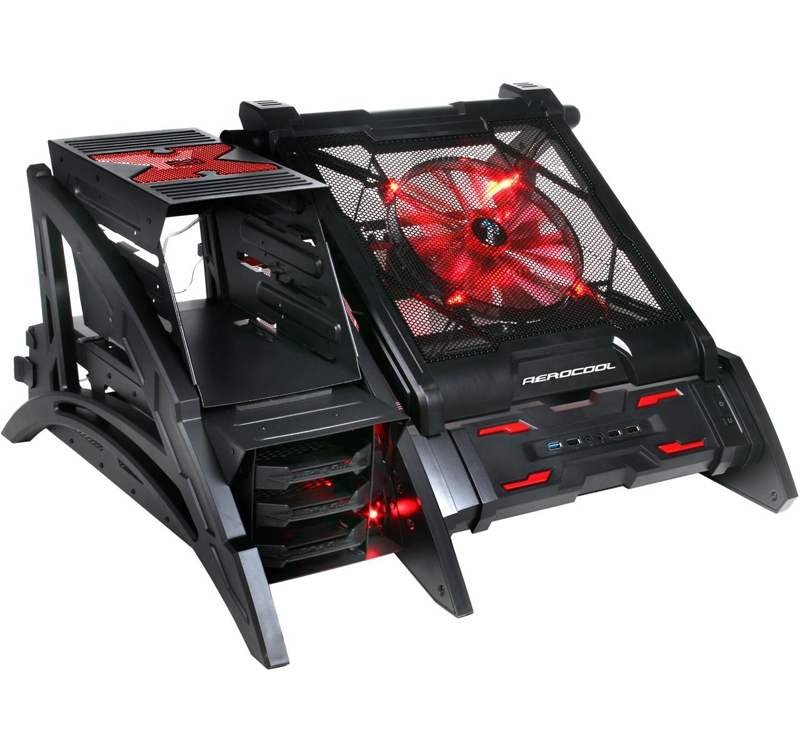

Aerocool Strike-x Air Concept Open Frame Pc Case

SKU
192776
Brand
Aerocool
Manufacturer Link
MPN
STRIKE-X AIR
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

Special Price $159.00 Regular Price $249.00
Buy Now And Earn 159 Reward Points!
Add to Compare






Specifications are subject to change without notice.

The product photo(s) is only for your reference, it may differ from the actual product.






Modding Show By FUXK.


  • State of the art Open Frame PC case design for all PC users!

  • Excellent cooling performance for gamers and enthusiast.

  • Ideal case for engineers and reviewers for benchmark testing.

  • Solidly constructed "ALL BLACK" chassis interior of 0.7mm SECC Japanese Steel w/PCI plate and mesh highlighted in red.

  • Supports longer high-end VGA cards up to 330 mm.

  • Supports 3 x 5 1/4" bays and 3 x 2.5"/3.5" HDDs (hot-swap)

  • Removable ODD cage for easy ODD installation .

  • 3 x SATA extension cables included .

  • 1 x USB 3.0 + 3 x USB 2.0 and Audio/Mic ports are easily accessible from the front panel.

  • Pre-drilled holes for cable management with high-end rubber protection to help tidy up the cable mess.

  • CPU holes is pre-drilled on the MB plate for ease of CPU cooler assembly.

  • Includes anti-vibration pad to protect your PSU from shock.

  • Supports the latest XL-ATX MB such as Gigabyte's latest X58-UD9 Motherboard and also has 10 PCI slots to support Quad VGA cards.

  • Water-cooling holes are pre-drilled to support water-cooling systems!!

  • 1 x 20cm RED LED top fan included .

  • 1 x 12cm RED LED fan for HDD cooling included.
▲TOP

▲TOP

▲TOP
Case Type Open Case
Material SECC 0.7mm
Motherboards Micro ATX/ATX/E-ATX/XL-ATX
Case Dimensions 340mm (H) x 613mm (W) x 535mm (D)
Carton Dimension 720mm (H) x640 mm (W) x 450mm (D)
Net Weight 6.35Kg
Gross Weight 10.55Kg (Retail box included)
Drive Bays Accessible - 3x5.25" ODD
Accessible - 3x2.5" HDD/SSD (with convertor bracket-included)
or
3x3.5" HDD (with convertor bracket-included)
Expansion Slots 10 Slots
Max length space available for PCI slots 330mm
I/O Ports 1xUSB3.0/3xUSB2.0/2HD Audio

▲TOP
Model Name STRIKE-X AIR
Case Type Open Case
Steel Thickness 0.7mm
Motherboards Micro ATX / ATX / E-ATX / XL-ATX
Case Dimensions 613 x 340 x 535mm (W x H x D, overall)
Drive Bays 3 x 5.25" (Exposed) / 3 x 3.5" HDD or 2.5" HDD
Expansion Slots 10 Slots
GPU Clearance 330mm
I/O Ports 1 x USB3.0 / 3 x USB2.0 / HD AUDIO
Height limit for CPU coolers 150mm
Air Cooling System

1 x 200mm Red LED Fan (Included)

1 x 120mm Red LED Fan (Included)
Net Weight 6.35 Kg (G.W 10.55Kg)
EAN Code

4710700956830



COOLING SYSTEM

Strike-X Air [ Top Fan ] [ HDD Fan ]
Black Edition  LED Fan  LED Fan



Fan 200 x 200 x 20 (mm) 120 x 120 x 25 mm
Rated voltage 5V 12V
Starting voltage 4.5V (Power ON/OFF) 6V
Rated current 0.21A 0.25A+10%Max
Power consumption 1.05W 3.0W+10%Max
Speed 600±200 R.P.M 1100+-10%RPM
Max AirFlow 57.0 CFM 36.4CFM
Max Static Pressure 0.281mm-H2O 1.32mm-H2O
Noise (dBA) 15.0dB-A 26.5dBA
The Aerocool Strike-X AIR open frame pc chassis is perfect for overclockers, enthusiasts, reviewers and test bench applications.
⚫State of the art Open Frame PC case design for all PC users!
⚫Excellent cooling performance for gamers and enthusiasts.
⚫Ideal case for engineers and reviewers for benchmark testing.
⚫Solidly constructed "ALL BLACK" chassis interior of 0.7mm SECC Japanese Steel w/PCI plate and mesh highlighted in red.
⚫Supports longer high-end VGA cards up to 330 mm.
⚫Supports 3 x 5 1/4" bays and 3 x 2.5"/3.5" HDDs (hot-swap)
⚫Removable ODD cage for easy ODD installation
⚫3 x SATA extension cables included
⚫Pre-drilled holes for cable management with high-end rubber protection to help tidy up the cable mess.
⚫CPU holes are pre-drilled on the MB plate for ease of CPU cooler assembly.
⚫Includes anti-vibration pad to protect your PSU from shock.
⚫Supports the latest XL-ATX MB such as Gigabyte's latest X58-UD9 Motherboard and also has 10 PCI slots to support Quad VGA cards.
⚫Water-cooling holes are pre-drilled to support water-cooling systems!!
