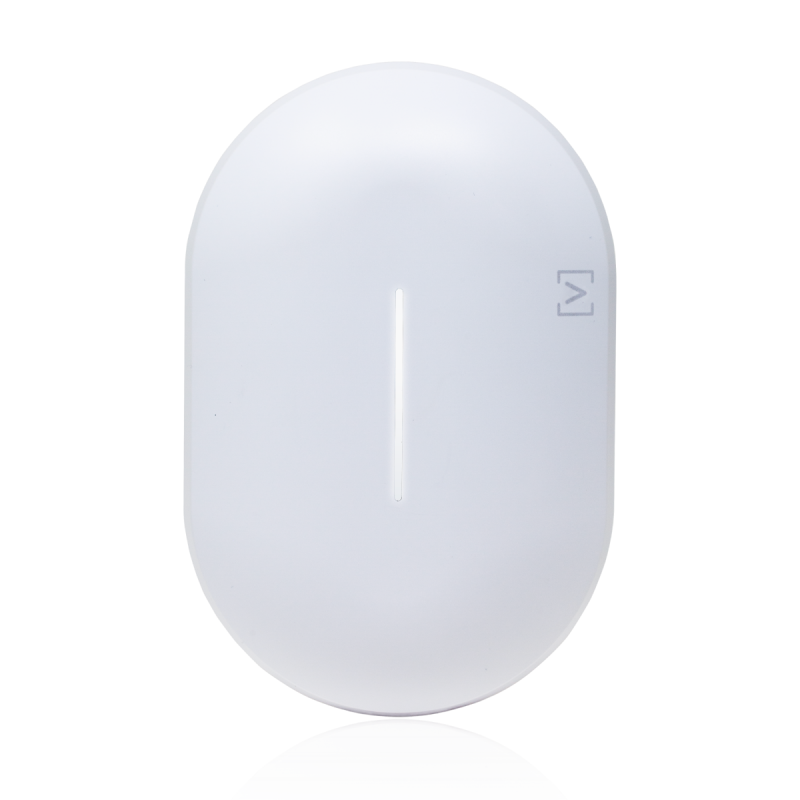

Elevate your network infrastructure with the Alta Labs Summit-A6 4x4 Dual-Band Enterprise Access Point 6-Pack. This powerful WiFi 6 access point is engineered to deliver superior performance and reliability in a wide range of environments, from commercial and corporate settings to advanced residential applications. Its compact form factor and sleek design ensure seamless integration, while the included QuickMount technology allows for quick and simple installation on ceilings, walls, or tabletops. With its robust dual-band capabilities and advanced features, the Summit-A6 provides corner-to-corner Gigabit-class connectivity.

The Summit-A6 is built on Qualcomm's advanced WiFi 6 networking platform, offering impressive data rates of up to 573Mbps on the 2.4GHz band and a blazing 2.4Gbps on the 5GHz band. Designed for high-density environments, it ensures seamless roaming and advanced traffic management for an optimised wireless experience. Power over Ethernet (PoE+) compatibility simplifies installation, reducing cabling complexity and ensuring a clean setup.

Experience unparalleled network control with Alta Labs' intuitive cloud-based management platform. This scalable system provides real-time monitoring, configuration, and management of multiple Summit-A6 units across different sites, all accessible via a browser or mobile app. Features like AltaPass Multi-Password Technology enhance security and flexibility, allowing for tailored access levels with different passwords linked to various access levels, bandwidth restrictions, or VLANs. The built-in Deep Packet Inspection (DPI) engine provides robust content filtering without requiring additional hardware, enabling administrators to block specific websites, applications, or domains.

The Summit-A6 also boasts flexible SSID broadcasting, including the ability to continue broadcasting SSIDs during scheduled network downtime, and customisable hotspot functionality with captive portals. With its advanced antenna design, this access point provides superior range and performance, even in challenging environments. The included versatile mounting hardware and thoughtful design ensure a professional and discreet installation for any modern space.

FEATURES

• High-Performance WiFi 6 technology for ultra-fast and reliable connections
• Dual-band support with up to 2.4Gbps on 5GHz and 573Mbps on 2.4GHz
• Proprietary antenna design for extended range and superior performance
• PoE+ compatible for streamlined installation and reduced cabling
• QuickMount technology for versatile wall, ceiling, or tabletop mounting
• Scalable Alta Labs cloud-based management platform for real-time monitoring and configuration
• AltaPass Multi-Password Technology for secure and flexible access control
• Built-in Deep Packet Inspection (DPI) engine for advanced content filtering
• Seamless roaming support (802.11k/v/r) for uninterrupted connectivity
• Customisable dashboard and device cards for intuitive network management
• Hotspot functionality with customisable captive portals
• On-the-fly changes and scanning without network reboots
• Wireless Network Colour Coding for easy SSID grouping and AP assignment
• SSID broadcasting flexibility, including scheduled off event broadcasting

SPECIFICATIONS

• Model: AP6
• Dimensions (L x W x H): 190mm x 125mm x 32mm
• Weight: 0.4kg
• Top Cover Material: Polycarbonate
• Bottom Cover Material: Milled Aluminium
• Mount Material (Ceiling/Wall): Polycarbonate
• Mount Material (Drop Ceiling): Steel
• Network Interfaces: Ethernet, WiFi, Bluetooth
• Ethernet Port: (1) GbE RJ45 Port
• Buttons: Reset / Factory Reset
• LED Indicators: Blue, White
• Power Method: PoE+ (PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter - Optional)
• Supported Voltage Range: 42.5-57V DC
• Maximum Power Consumption: 20W Max, 5-12W Typical @ 23 C (73 F)
• Maximum Transmit Power:
  • 2.4GHz: 23dBm @2NSS
  • 5GHz: 23dBm @2NSS
• MIMO:
  • 5GHz: 2x2, UL MU-MIMO (in STA mode), DL/UL MU-OFDMA
  • 2.4GHz: 2x2, DL/UL MU-OFDMA
• Explicit TX Beam-forming: Yes
• Throughput Rate:
  • 2.4GHz: Up to 573Mbps
  • 5GHz: Up to 2.4Gbps
• Antenna Gain:
  • 2.4GHz: Up to 4.0dBi
  • 5GHz: Up to 4.1dBi
• Mounting: Wall, Ceiling, Drop-Ceiling, Table Top
• Operating Temperature: -30 to 60 C (-22 to 140 F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
• WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 4/WiFi 5/WiFi 6)
• Roaming: 802.11r/k/v
• Wireless Security: WPA2-PSK, WPA2-SAE, WPA-Enterprise (WPA2/WPA3)
• Multi-BSSID: Supported
• 802.1Q: Supported
• Advanced QoS: 802.11e
• Guest Traffic Isolation: Supported
• Concurrent Clients: 300+
• Zero Wait DFS: Yes
• Intelligent WiFi Scheduling: Yes
• Painless Hotspot Setup: Yes

WARRANTY

2-Year Limited Warranty
