Description

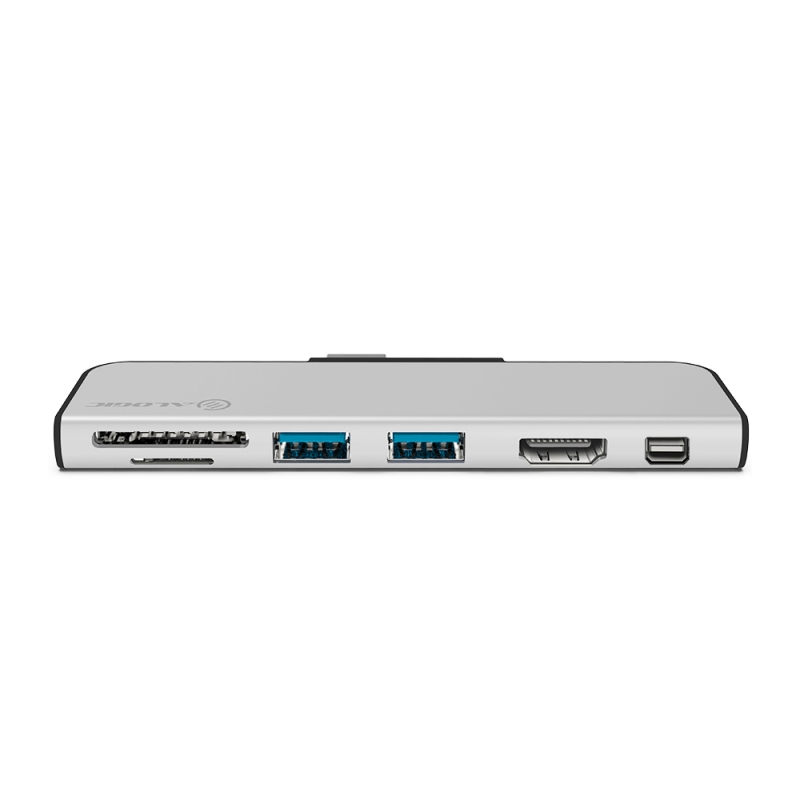

ALOGIC Surface PRO Portable Dock is designed to enable your Surface Pro device for full-featured connectivity. It adds all the popular ports to your Surface Pro device for On the Go or on a Desk use. The Surface Pro Portable Dock connects to both the USB-A and the Mini DisplayPort connectors on the Surface Pro device at the same time. It uses both these connections to output 1 x HDMI 4K@30Hz, 1 x Mini DisplayPort @4k@60Hz, 2 x USB-A (USB 3.0), 1 x SD & Micro SD Card Reader. The dock is a plug and play device, so simply connect the portable dock to your device and gain access to the full array of ports for your keyboard, mouse, external display/monitor, printer and many more without the need of installing any drivers.

Complete Connectivity

The Surface Pro Dock features a full array of ports providing all the popular digital connectivity options. It has the most popular HDMI (4K@30Hz) and Mini DisplayPort (4K@60Hz) output to add an external display (only one output is supported at once), 2 x USB-A (USB 3.0) to connect a USB storage device, keyboard, mice etc and both Micro SD & SD card readers to quickly transfer your photos and videos.

Plug & Play

The dock is powered through a combination of Mini DisplayPort and USB-A ports on the Surface Pro devices. The dock is a plug and play device without the need of installing any drivers or software. The dock is also host powered and does not need any external power to run making it a truly portable solution.

Compact & Portable

The Surface Pro Dock has a small footprint designed to be compact and lightweight for ease of use in a variety of environments. The Dock is portable enough to take with you on-the-go or can be used on a desk at home or office to connect multiple peripherals to your Surface Pro device. It has been smartly designed to keep all the ports on one side for easy access and better cable management.

User Interface

Input: USB-A (Male) and Mini DisplayPort (Male)

Output:

USB-A (USB 3.0) x 2

HDMI (4K@30Hz) x 1

Mini DisplayPort (4K@60Hz) x 1

Micro/SD Memory Card Reader x 1

Data Rate:

Supports USB-A (3.0) with a data rate of up to 5Gbps (600MBps)

Resolution:

HDMI port supports 4K@30Hz

Mini DisplayPort supports 4K@60Hz

System Requirement:

Surface Pro 5/6



Package Content:

Surface Pro Dock Portable x 1

User Manual x 1

Features

1. Compact and lightweight design.

2. Aluminium & soft touch ABS construction for an elegant and robust design.

3. A full array of ports – HDMI (4K@30Hz), Mini DisplayPort (4K@60Hz), 2 x USB-A (USB 3.0) and Micro SD & SD card readers

4. Supports Monitor Resolution with up to 4K@30Hz via the HDMI Port and 4K@60Hz via Mini DisplayPort output.

5. 2 x USB-A (USB 3.0) ports for connecting your keyboard, mouse, printer or any other existing USB-A peripherals.

6. Supports both Micro SD and SD memory card readers to quickly transfer data, photos, songs, video and moves at high speed.
