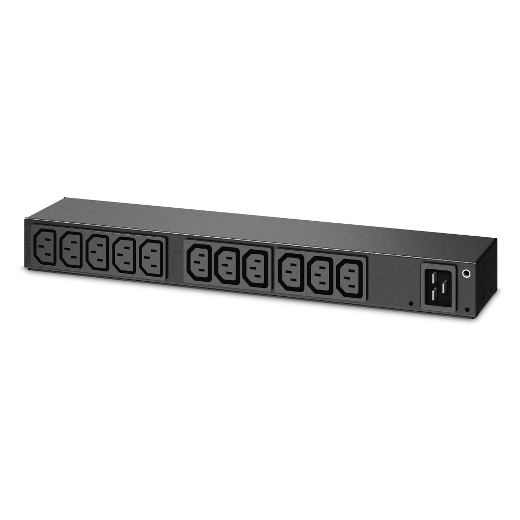

APC NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet AP6020A
DESCRIPTION
APC NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Colour Black
PDU type Basic
Provided equipment- Installation guide, Safety guide
Input Voltage- 100 V, 120 V, 200 V, 208 V, 230 V, 240 V
Rack units 1U
USB compatible No
Mounting position Horizontal
[In] rated current 16 A
Permissible voltage 100…240 V
Max line current 20 A
Input current limits 20 A
Load capacity 3300 VA
Network frequency 50/60 Hz
Total number of outlets 13 IEC 60320 C13
Product certifications- cUL listed, CE, EAC, IRAM, PSE, UL listed, VDE
Mounting mode- Not rack mountable
Compatible Racks- AR3100, AR3003, AR3006, AR3103, AR3104, AR3105, ER6202, ER8222
