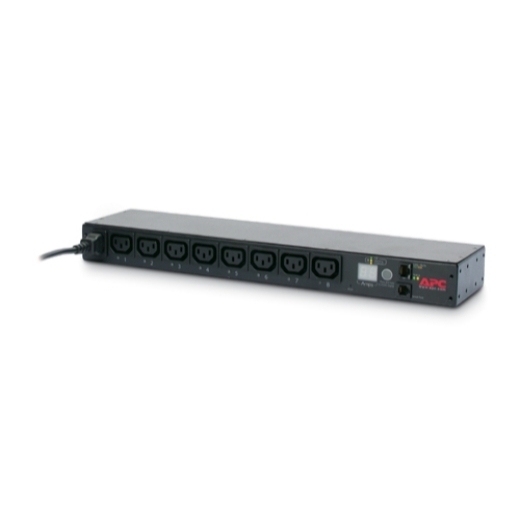

APC SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13 (AP7920B)
SKU
367649
Brand
MPN
AP7920B
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,558.00
Buy Now And Earn 1558 Reward Points!
Key Features
Rack Height
1U
Output Connections
(8) IEC 60320 C13
Nominal Output Voltage
208V, 230V
Nominal Input Voltage
200V, 208V, 230V
Input Connections
IEC 60320 C14
Cord Length
2meters
Output
Maximum Total Current Draw
10
Different voltages and corresponding amperages
10A @ 230V, 12A @ 208VA
Input
Input frequency
50/60 Hz
Acceptable Input Voltage
200 - 240VAC
Number of Power Cords
1
Load Capacity
2300VA
Maximum Input Current
15A
Regulatory Derated Input Current (North America)
12A
Physical
Maximum Height
44MM, 4.4CM
Maximum Width
445MM, 44.5CM
Maximum Depth
108MM, 10.8CM
Net Weight
2.27KG
Shipping weight
3.45KG
Shipping Height
70MM, 7.0CM
Shipping Width
470MM, 47.0CM
Shipping Depth
343MM, 34.3CM
Color
Black
Environmental
Operating Temperature
0 - 45 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-25 - 65 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0 - 15240meters
APC (AP7920B) SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13
