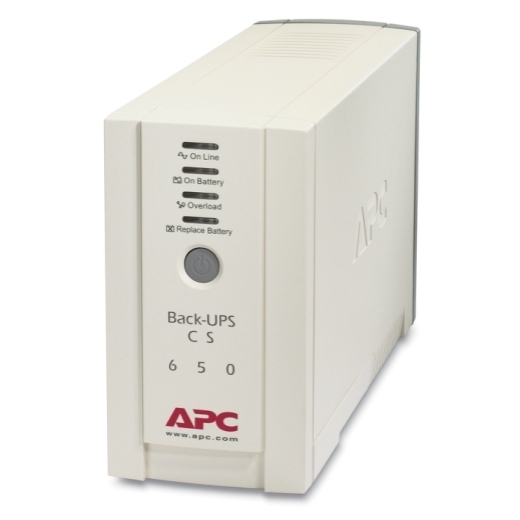

BK650-AS Features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Audible alarms
Provides notification of changing utility power and UPS conditions.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial Connectivity
Provides management of the UPS via a serial port.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
LED status indicators
Quickly understand unit and power status with visual indicators.

Back-UPS CS Features & Benefits
Protection
Data line surge protection
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Convenience
LED status indicators
Quickly understand unit and power status with visual indicators.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery replacement without tools
Allows quick, easy battery replacement.
Availability
Cold-start capable
Provides temporary battery power when the utility power is out.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Resettable circuit breakers
Enables a quick recovery from overload events.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Output
Output Power Capacity
400Watts /650 VA
Max Configurable Power
400Watts /650 VA
Nominal Output Voltage
230V
Output Connections
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Cord Length
1.83meters
Input voltage range for main operations
180 - 260V
Input voltage adjustable range for mains operation
160 - 282V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8hour(s)
Replacement Battery
RBC17
RBC Quantity
1
Extended Run Options
APC BACK-UPS CS 650VA 230V ASEAN
Runtime Graph
Communications & Management
Interface Port(s)
DB-9 RS-232,USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
320Joules
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical
Maximum Height
165.00mm
Maximum Width
91.00mm
Maximum Depth
284.00mm
Net Weight
6.04KG
Shipping Weight
7.32KG
Shipping Height
494.00mm
Shipping Width
185.00mm
Shipping Depth
415.00mm
Master Carton Units
1.00
Master Carton Weight
16.09lbs.
Color
Beige
Environmental
Operating Environment
0 - 40C
Operating Relative Humidity
5 - 95%
Operating Elevation
0-9000meters
Storage Temperature
-15 - 45C
Storage Relative Humidity
5 - 95%
Storage Elevation
0-4500meters
Audible noise at 1 meter from surface of unit
45.00dBA
Online Thermal Dissipation
0.00BTU/hr
Conformance
Regulatory Approvals
A-tick,C-tick,CE,GOST,NEMKO
Standard Warranty
2 years repair or replace
