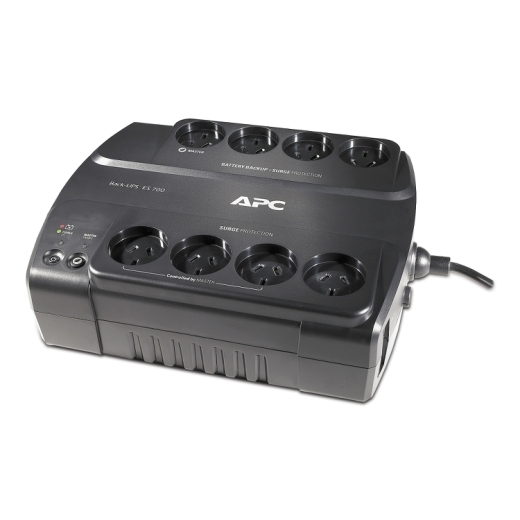

APC Back-UPS 700VA/405W Power-Saving Ups, Desk Top, 230V/10A Input, 8x Aus Outlets, Lead Acid Battery, User Replaceable Battery BE700G-AZ

SKU
232526
Brand
Apc
Manufacturer Link
MPN
BE700G-AZ
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $268.00 Regular Price $309.00
Buy Now And Earn 268 Reward Points!
Add to Compare
APC Power-Saving Back-UPS ES 700VA, 230V, 8 Australian (AS 3112) outlet (4 surge)

This product is part of the Back-UPS range. It features a total of 8 power outlets, 4 of which are UPS battery backup and 4 that are surge only. Its runtime at 100W is 30 minutes. The UPS has a surge energy rating of 310 Joules and provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. The Back UPS range supplies battery backup power during outages and unsafe voltage fluctuations, as well as protection from damaging surges and spikes - perfect for wireless networks, gaming consoles and other electronics.
Main Input Voltage 230 V
Main Output Voltage 230 V
Other Output Voltage 220 V
Rated power in W 405 W
Rated power in VA 700 VA
Input Connection Type Australian/Chinese
Output connection type 4 Australian surge, 4 Australian
Cable length 1.83 m
Battery type Lead-acid battery
Provided equipment- CD with software, Telephone cable, User manual
Network frequency 50/60 Hz +/- 5 Hz auto-sensing
Plug standard Australian/Chinese
Maximum input current 10 A
Maximum configurable power in W 405 W
Output frequency- 47...63 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Wave type Stepped approximation to a sinewave
Output voltage tolerance +/- 5% static and 100% load step
Maximum configurable power in VA 700 VA
Transfer time 6 ms typical : 10 ms maximum
Product certifications- A-Tick, C-Tick, CE, Telepermit
Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Equipment protection policy- Lifetime : 150000 AUD
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 %
Operating altitude 0...30000 ft
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…9144.00 m
Acoustic level 40 dBA

Mounting mode- Not rack mountable
Replacement Battery - RBC17
Compatible Batteries- BATT17-1209

Output

  • Output power capacity
    405Watts / 700VA
  • Max Configurable Power (Watts)
    405Watts / 700VA
  • Nominal Output Voltage
    230V
  • Output Frequency (sync to mains)
    47 - 63 Hz
  • Output Frequency (not synced)
    50Hz +/- 0.1% for 50Hz nominal
  • Other Output Voltages
    220
  • Waveform type
    Stepped approximation to a sinewave
  • Output Connections
    (4) Australian (selector_surgetitle)
    (4) Australian (Battery Backup)
  • Output Voltage Tolerance
    +/- 5% static and 100% load step
  • Transfer Time
    6ms typical : 10ms maximum

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 5 Hz (auto sensing)
  • Input Connections
    Australian/Chinese
  • Cord Length
    1.83meters
  • Maximum Input Current
    10.0A

Batteries & Runtime

  • Battery type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time
    16hour(s)
  • Replacement Battery
    RBC17
  • Expected Battery Life (years)
    3 - 5
  • Battery Volt-Amp-Hour Capacity
    86
  • Runtime
    View Runtime Graph
    View Runtime Chart

Communications & Management

  • Interface Port(s)
    USB
  • Control panel
    LED status display with On Line : On Battery : Replace Battery and Overload indicators

Surge Protection and Filtering

  • Surge energy rating
    310Joules
  • Data Line Protection
    Analog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector)
  • Filtering
    Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    89mm , 8.9cm
  • Maximum Width
    224mm , 22.4cm
  • Maximum Depth
    311mm , 31.1cm
  • Net Weight
    6.93kg
  • Shipping weight
    7.84kg
  • Shipping Height
    127mm , 12.7cm
  • Shipping Width
    279mm , 27.9cm
  • Shipping Depth
    400mm , 40.0cm
  • Master Carton Dimensions (Length x Width x Height)
    324mm
  • Master Carton Units
    1.0
  • Master Carton Weight
    16.36
  • Pallet Dimensions
    48inches
  • # of Layers per Pallet
    4.0
  • # of Units per Layer per Pallet
    20.0
  • Pallet Weight
    1400.0lbs.
  • Units per Pallet
    48.0
  • SCC Codes
    1073130427167 0

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-9000meters
  • Storage Temperature
    -15 - 40 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-9000meters
  • Audible noise at 1 meter from surface of unit
    40.0dBA

Conformance

  • Approvals
    A-tick, C-tick, CE, Telepermit
  • Equipment protection policy
    Lifetime : 150000 AUD
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
APC Back-UPS 700VA/405W Power-Saving UPS, Desk Top, 230V/10A Input, 8x Aus Outlets, Lead Acid Battery, User Replaceable Battery
