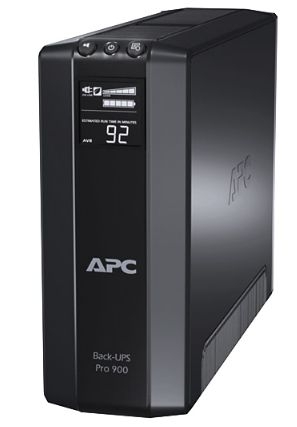

Apc Back-ups Pro 900va 540w Br900gi
SKU
232529
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$398.00
Buy Now And Earn 398 Reward Points!
BR900GIFeatures
APC Power-Saving Back-UPS Pro 900, 230V
Back-UPS ProFeatures & Benefits
Availability
Protection
Manageability
Serviceability
Marketing Features
Safety
Output
Input
Batteries & Runtime
Communications & Management
Surge Protection and Filtering
Physical
Environmental
Conformance
Sustainable Offer Status
Output
• Output power capacity: 540 Watts / 900 VA
• Max Configurable Power (Watts): 540 Watts / 900 VA
• Nominal Output Voltage: 230V
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
• Output Frequency (not synced): 60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
• Load Crest Factor: 3: 1
• Topology: Line Interactive
• Waveform type:Stepped approximation to a sinewave
• Output Connections: ◦ (4) IEC 320 C13 (Battery Backu)
◦ (4) IEC 320 C13 (selector_surgetitle)
• Transfer Time:8ms typical: 10 ms maximum
• Bypass: Built-in Bypass
Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Input voltage range for main operations: 176 - 294 V
• Input voltage adjustable range for mains operation: 156 - 300 V
• Number of Power Cords: 2
• Maximum Input Current: 8.0 A
Batteries & Runtime:
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time: 8 hour(s)
• Replacement Battery: APCRBC123
• RBC Quantity: 1
• Battery Volt-Amp-Hour Capacity: 157
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): Optional Simple Signalling RS232 cable, USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Surge Protection and Filtering
• Surge energy rating: 613 Joules
• Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
• Filtering: Full time multi-pole noise filtering:10% of IEEE surge let-thgouh: zero clamping response time: instantaneous
• Output power capacity: 540 Watts / 900 VA
• Max Configurable Power (Watts): 540 Watts / 900 VA
• Nominal Output Voltage: 230V
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
• Output Frequency (not synced): 60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
• Load Crest Factor: 3: 1
• Topology: Line Interactive
• Waveform type:Stepped approximation to a sinewave
• Output Connections: ◦ (4) IEC 320 C13 (Battery Backu)
◦ (4) IEC 320 C13 (selector_surgetitle)
• Transfer Time:8ms typical: 10 ms maximum
• Bypass: Built-in Bypass
Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Input voltage range for main operations: 176 - 294 V
• Input voltage adjustable range for mains operation: 156 - 300 V
• Number of Power Cords: 2
• Maximum Input Current: 8.0 A
Batteries & Runtime:
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time: 8 hour(s)
• Replacement Battery: APCRBC123
• RBC Quantity: 1
• Battery Volt-Amp-Hour Capacity: 157
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): Optional Simple Signalling RS232 cable, USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Surge Protection and Filtering
• Surge energy rating: 613 Joules
• Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
• Filtering: Full time multi-pole noise filtering:10% of IEEE surge let-thgouh: zero clamping response time: instantaneous
