SBP10KRMI4U Features

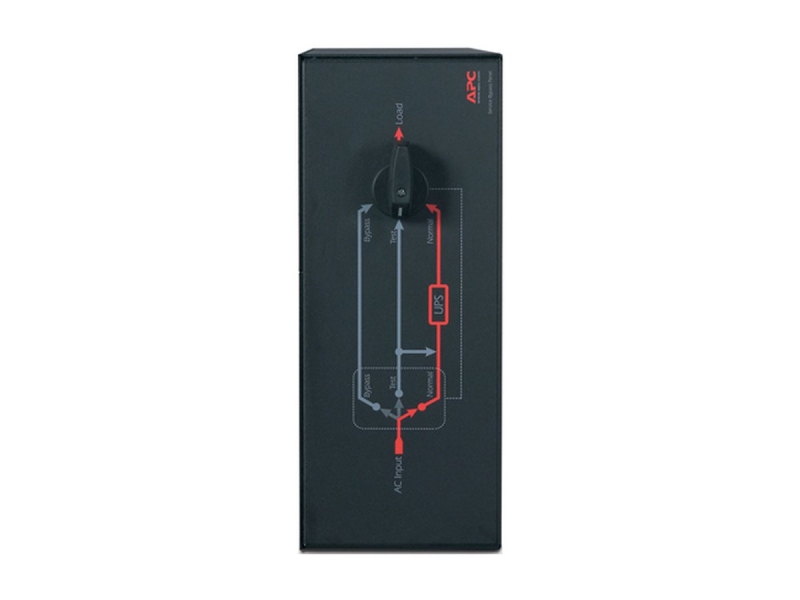

Wrap Around System Bypass (3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Product Distribution
Afghanistan, Albania, Algeria, Andorra, Angola, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahrain, Bangladesh, Belarus, Belgium, Benin, Bhutan, Bolivia, Bosnia And Herzegovina, Botswana, Brazil, Brunei Darussalam, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Central African Republic, Chad, Chile, China, Congo, Congo, The Democratic Republic Of The, Cook Islands, Cote D'ivoire, Croatia, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, East Timor, Egypt, Equatorial Guinea, Estonia, Ethiopia, Fiji, Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guinea, French Guiana, Hong Kong, Hungary, Iceland, India, Indonesia, Iran (Islamic Republic Of), Iraq, Ireland, Israel, Italy, Jordan, Kazakhstan, Kenya, Korea, Republic Of, Kuwait, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, Mali, Malta, Martinique, Mauritania, Mauritius, Mayotte, Moldova, Republic Of, Morocco, Mozambique, Myanmar, Namibia, Nepal, Netherlands, New Zealand, Niger, Nigeria, Norway, Oman, Pakistan, Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Reunion, Romania, Russian Federation, Rwanda, Saint Kitts And Nevis, Saint Lucia, Saint Vincent And The Grenadines, Saudi Arabia, Senegal, Serbia And Montenegro, Sierra Leone, Singapore, Slovakia (Slovak Republic), Slovenia, Somalia, South Africa, Spain, Sri Lanka, Sudan, Sweden, Switzerland, Tanzania, United Republic Of, Thailand, Togo, Tunisia, Turkey, Turkmenistan, Uganda, Ukraine, United Arab Emirates, United Kingdom, Uruguay, Uzbekistan, Viet Nam, Western Sahara, Yemen, Zambia, Zimbabwe
Output
Nominal Output Voltage 230V
Maximum Total Current Draw per Phase 100A
Output Connections
(8) IEC 320 C13 IEC 320 C13
(2) IEC 320 C19 IEC 320 C19
Overload Protection Yes
Input
Nominal Input Voltage 230V
Input Frequency 50/60 Hz
Input Connections
Hard Wire 3 wire (1PH+N+G)
Hard Wire 4-wire (3PH + N)
Number of Power Cords 1
Maximum Line Current per phase 100A
Maximum Input Current per phase 100A
Load Capacity 20 kVA
Load Power Factor Range 0 to 1
Physical
Net Weight 20.91 KG
Maximum Height 178.00 mm
Maximum Width 432.00 mm
Maximum Depth 673.00 mm
Shipping Weight 31.36 KG
Shipping Height 305.00 mm
Shipping Width 610.00 mm
Shipping Depth 991.00 mm
Color Black
Units per Pallet 6.00
Environmental
Operating Environment -20 - 50 ?C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-4500 meters
Storage Temperature -40 - 65 ?C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-15000 meters
Conformance
Regulatory Approvals CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Standard Warranty 2 years (parts only)
