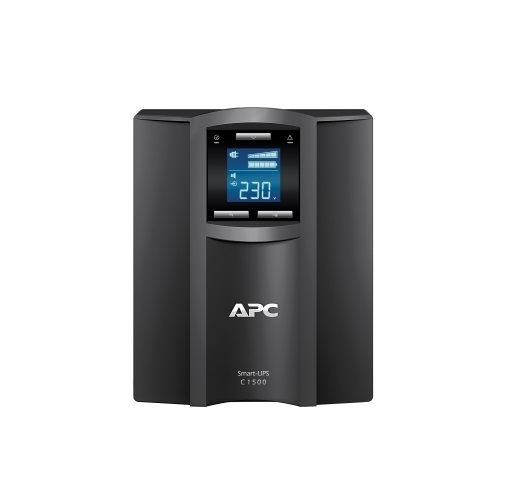

Apc Smart-ups C 1500va Lcd 230v Smc1500i 157138
Output
Output Power Capacity
900 Watts / 1500 VA
Max Configurable Power
900 Watts / 1500 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform Type
Sine wave
Output Connections
(4) IEC 320 C13 IEC 320 C13
(2) IEC Jumpers
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
180 - 287V
Input voltage adjustable range for mains operation
170 - 300V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
APCRBC132
RBC™ Quantity
1
Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load
View Enlarged Graph
View Runtime Chart
Energy Use/Efficiency
Load Efficiency
25% 96.3%
50% 97.5%
75% 97.6%
100% 97.4%
Hover over the line on the graph above to view the efficiency at any desired
load
Curve fit to measured efficiency data. All measurements taken in normal
operating mode, at typical environmental conditions, with nominal electrical
input and balanced resistive load (PF = 1.0) output.
View Enlarged Graph
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating
459 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero
clamping response time : meets UL 1449
Physical
Maximum Height
89.00 mm
Maximum Width
432.00 mm
Maximum Depth
457.00 mm
Rack Height
2U
Net Weight
28.64 KG
Shipping Weight
31.91 KG
Shipping Height
251.00 mm
Shipping Width
594.00 mm
Shipping Depth
603.00 mm
Color
Black
Units per Pallet
16.00
Environmental
Operating Environment
0 - 40 ?C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 ?C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
46.00 dBA
Online Thermal Dissipation
90.00 BTU/hr
Conformance
Regulatory Approvals
C-tick, CE, GOST, VDE
Standard Warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
| Marketing Text | Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| PI Date | Sep 2013 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Line | Smart-UPS |
| Product Type | Uninterruptible Power Supply |
| Type | Sealed Lead Acid |
| Input Connection | 1 x IEC-320 C14 |
| SmartSlot | Yes |
| Interface | 1 x USB |
| Input Voltage | 230Volt |
| Output Power | 900Watt |
| Output Voltage | 230Volt |
| Surge Energy Rating | 459Joules |
| Input Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 439.0 |
| Height (mm) | 219.0 |
| Width (mm) | 171.0 |
| Weight (Kg) | 24.1 |
| Colour | Black |
| Other Features | * Output Power Capacity : 900 Watts / 1500 VA * Topology : Line Interactive * Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof * Output Frequency (sync to mains) : 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
| Control Panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Operating Temperature | 0 - 40°C |
| Environmental Compliance | RoHS |
| Warranty Information | 2 years repair or replace |
