SC450RMI1UFeatures

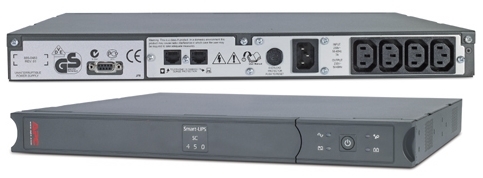

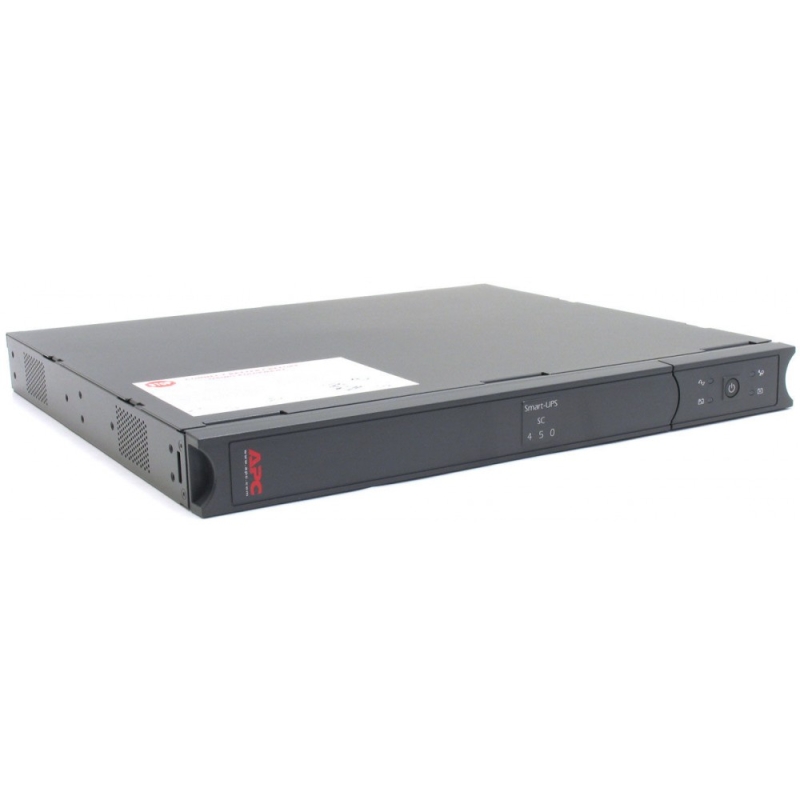

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

• Front-access servicing
  Simplifies installation and UPS maintenance while minimizing space requirements.
• Multiple mounting methods
  Allows for standardization on one product for use in different environments.
• Rack/Tower convertible
  Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPSFeatures & Benefits

Adaptability

• Adjustable voltage-transfer points
  Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Adjustable voltage sensitivity
  Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety

• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

• USB connectivity
  Provides management of the UPS via a USB port (not available on all models).
• Serial connectivity
  Provides management of the UPS via a serial port.
• Disconnected battery notification
  Warns when a battery is not available to provide backup power.
• Network manageable
  Provides remote power management of the UPS over the network.
• LED status indicators
  Quickly understand unit and power status with visual indicators.
• Audible alarms
  Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

Serviceability

• Resettable circuit breakers
  Enables a quick recovery from overload events.
• Predictive failure notification
  Provides early-warning fault analysis ensuring proactive component replacement.
• User-replaceable batteries
  Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
• Hot-swappable batteries
  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
• Battery failure notification
  Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Marketing Features

• Smarter productivity  with ability to tailor to your specific application needs
  Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
• Save time with easy and convenient remote accessibility
  Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
• Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
  Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
• Avoids costly power problems by keeping your IT equipment and data safe and available
  Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
• Peace of mind that comes with full equipment compatibility and reliability of a leader
  Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Availability

• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.
• Automatic restart of loads after UPS shutdown
  Automatically starts up the connected equipment upon the return of utility power.
• Disconnected battery notification
  Warns when a battery is not available to provide backup power.
• Boost and Trim Automatic Voltage Regulation (AVR)
  Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Power conditioning
  Protects connected loads from surges, spikes, lightning, and other power disturbances.
