Smart-UPS

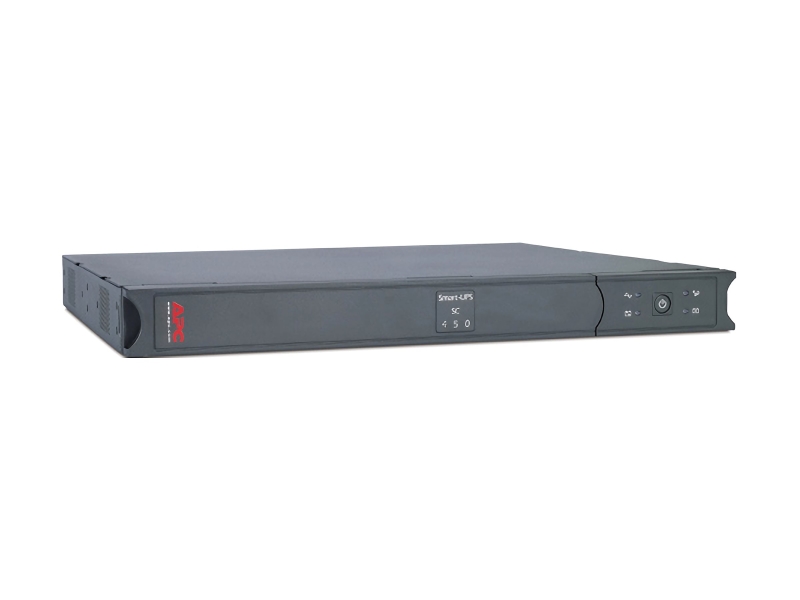

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
Smart-UPS Smart-UPS
APC Smart-UPS, 280 Watts / 450 VA, Input 230V / Output 230V , Interface Port DB-9 RS-232 , Rack Height 1 U
Includes: CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, User Manual
SC450RMI1U Features

Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Multiple mounting methods Allows for standardization on one product for use in different environments.
Front-access servicing Simplifies installation and UPS maintenance while minimizing space requirements.

Smart-UPS Features & Benefits
Availability
Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.
Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notificationWarns when a battery is not available to provide backup power.
Manageability
Network manageableProvides remote power management of the UPS over the network.
Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicatorsQuickly understand unit and power status with visual indicators.
Serial ConnectivityProvides management of the UPS via a serial port.
USB connectivityProvides management of the UPS via a USB port (not available on all models).
Disconnected battery notificationWarns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakersEnables a quick recovery from overload events.
Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Output Power Capacity280 Watts / 450 VA
Max Configurable Power280 Watts / 450 VA
Nominal Output Voltage230V
Output Voltage DistortionLess than 5% at full load
Output Frequency (sync to mains)47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
TopologyLine Interactive
Waveform TypeStepped approximation to a sinewave
Output Connections
(4) IEC 320 C13 IEC 320 C13
(2) IEC Jumpers
Input
Nominal Input Voltage230V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations160 - 286V
Input voltage adjustable range for mains operation151 - 302V
Batteries & Runtime
Battery TypeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time5 hour(s)
Replacement BatteryRBC18
RBC™ Quantity1
Runtime Graph
Communications & Management
Interface Port(s)DB-9 RS-232
Control panelLED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)Optional
Surge Protection and Filtering
Surge energy rating320 Joules
FilteringFull time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line ProtectionRJ-11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines), RJ45 10/100 Base-T Ethernet protection
Physical
Maximum Height44.00 mm
Maximum Width432.00 mm
Maximum Depth383.00 mm
Rack Height1U
Net Weight10.18 KG
Shipping Weight11.73 KG
Shipping Height164.00 mm
Shipping Width476.00 mm
Shipping Depth589.00 mm
ColorGrey
Units per Pallet24.00
Environmental
Operating Environment0 - 40 ?C
Operating Relative Humidity0 - 95%
Operating Elevation0-3000 meters
Storage Temperature-15 - 45 ?C
Storage Relative Humidity0 - 95%
Storage Elevation0-15000 meters
Audible noise at 1 meter from surface of unit38.00 dBA
Online Thermal Dissipation38.00 BTU/hr
Conformance
Regulatory ApprovalsC-tick, CE, GOST, VDE
Standard Warranty2 years repair or replace
Sustainable Offer Status
RoHSCompliant
PEPAvailable in Documentation tab
EOLIAvailable in Documentation tab
Other Environmental ComplianceChina RoHS
