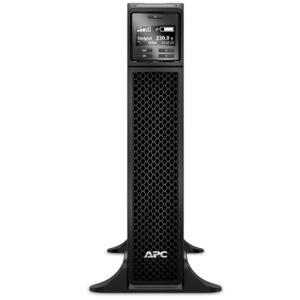

Apc - Schneider Apc Smart-ups Srt 2200va 230v Srt2200xli
SKU
247144
Brand
MPN
SRT2200XLI
Warranty
Standard Manufacturer's Warranty
$3,553.00
Buy Now And Earn 3553 Reward Points!
APC SMART-UPS SRT 2200VA 230V
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications.
| Battery Information | |
|---|---|
| Backup/Run Time (Full Load): | 4 Minute |
| Maximum Battery Recharge Time: | 3 Hour |
| General Information | |
|---|---|
| Brand Name: | APC by Schneider Electric |
| Manufacturer Part Number: | SRT2200XLI |
| Manufacturer Website Address: | http://www.schneider-electric.com.au |
| Manufacturer: | Schneider Electric SA |
| Product Line: | Smart-UPS On-Line |
| Product Name: | Smart-UPS SRT 2200VA 230V |
| Product Type: | Dual Conversion Online UPS |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Physical Characteristics | |
|---|---|
| Depth: | 584 mm |
| Form Factor: | Tower |
| Height: | 432 mm |
| Weight (Approximate): | 25 kg |
| Width: | 85 mm |
| Power Description | |
|---|---|
| Input Voltage: | 230 V AC |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.98 kW |
| Output Voltage: | 230 V AC |
| Technical Information | |
|---|---|
| Receptacles: | 2 x IEC 60320 C19 |
| 8 x IEC 60320 C13 | |
| Marketing Text | Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. |
| PI Date | Dec 2015 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Type | Uninterruptible Power Supply |
| Backup/Run Time | 4minutes |
| Type | Sealed Lead Acid |
| SmartSlot | Yes |
| Input Voltage | 230Volt |
| Output Power | 1980Watt |
| Output Voltage | 230Volt |
| Surge Energy Rating | 340Joules |
| Input Frequency | 40 - 70Hz |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 584.0 |
| Height (mm) | 432.0 |
| Width (mm) | 85.0 |
| Weight (Kg) | 25.0 |
| Colour | Black |
| Cord Length | 2.44meter |
| Other Features | * Built-in Bypass * Topology: Double Conversion Online |
| Rack Height | 2U |
| Control Panel | * Multi-function LCD status and control console |
| Audible Alarm | * Audible and visible alarms prioritized by severity |
| Operating Temperature | 0 - 40°C |
| Environmental Compliance | * Energy Star * Operating Relative Humidity: 0 - 95% no % * Operating Elevation: 0-3000 meters * Storage Temperature: -20 - 50 °C * Storage Relative Humidity: 0 - 95% no % * Storage Elevation: 0-15000 meters * Audible noise at 1 meter from surface of unit: 55.0 dBA * Online thermal dissipation: 535.0 BTU/hr * Protection Class: IP 20 |
