Extra Remarks: Warranty Information : 3 years repair or replace (excluding battery) and 2 year for battery
Smart-UPS

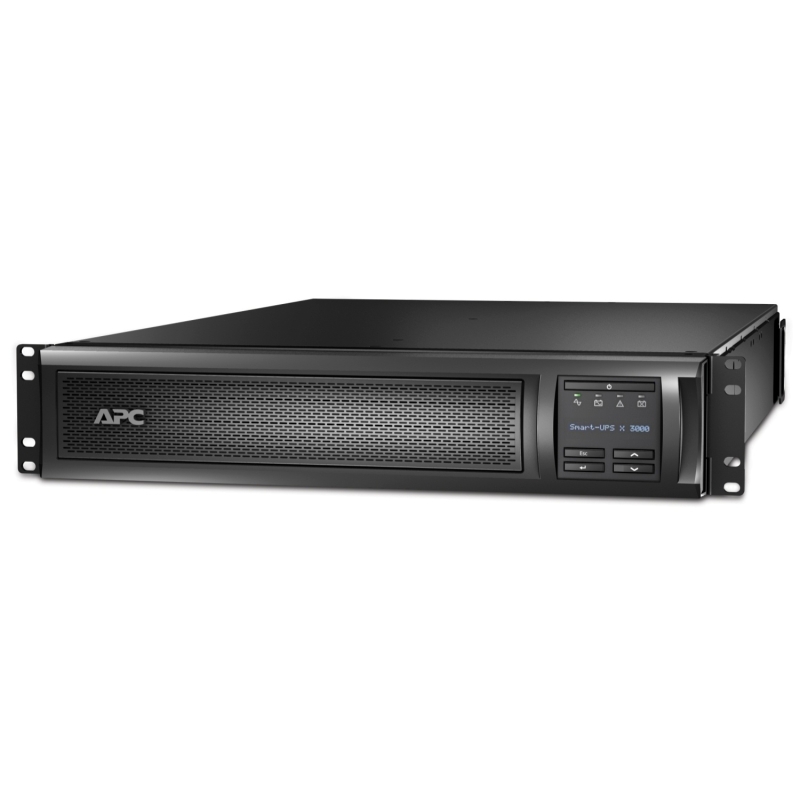

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

Smart-UPSSmart-UPS
APC Smart-UPS,2700 Watts /3000 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 2 U
Includes: CD with software, Documentation CD, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User ManualStandard Lead Time: Usually in Stock

Smart-UPS Features & Benefits

Availability
Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.
Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notificationWarns when a battery is not available to provide backup power.
Manageability
Network manageableProvides remote power management of the UPS over the network.
Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicatorsQuickly understand unit and power status with visual indicators.
Serial ConnectivityProvides management of the UPS via a serial port.
USB connectivityProvides management of the UPS via a USB port (not available on all models).
Disconnected battery notificationWarns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakersEnables a quick recovery from overload events.
Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Output Power Capacity2700 Watts / 3000 VA
Max Configurable Power2700 Watts / 3000 VA
Nominal Output Voltage230V
Output Voltage DistortionLess than 5%
Output Frequency (sync to mains)50/60Hz +/- 3 Hz
Other Output Voltages208, 220, 240
Crest Factor3 : 1
TopologyLine Interactive
Waveform TypeSine wave
Output Connections
(8) IEC 320 C13 IEC 320 C13
(1) IEC 320 C19 IEC 320 C19
(2) IEC Jumpers
Input
Nominal Input Voltage208V, 230V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C20
Schuko CEE 7 / EU1-16P
British BS1363A
Cord Length1.83 meters
Input voltage range for main operations140 - 280V
Other Input Voltages220, 240
Transfer Time2-4 ms
Batteries & Runtime
Battery TypeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time3 hour(s)
Replacement BatteryAPCRBC117
RBC™ Quantity1
Extended Run OptionsAPC Smart-UPS X 3000VA Rack/Tower LCD 200-240V



Communications & Management
Interface Port(s)SmartSlot
Available SmartSlot™ Interface Quantity1
Control panelLED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)Yes
Surge Protection and Filtering
Surge energy rating645 Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection--
Physical
Maximum Height85.00 mm
Maximum Width432.00 mm
Maximum Depth667.00 mm
Rack Height2U
Net Weight37.32 KG
Shipping Weight45.36 KG
Shipping Height243.00 mm
Shipping Width596.00 mm
Shipping Depth869.00 mm
ColorBlack
Units per Pallet8.00
# of Layers per Pallet4
# of Units per Layer per Pallet2
Pallet Weight388.69 KG
Environmental
Operating Environment0 - 40 ?C
Operating Relative Humidity0 - 95%
Operating Elevation0-3000 meters
Storage Temperature-15 - 45 ?C
Storage Relative Humidity0 - 95%
Storage Elevation0-15000 meters
Audible noise at 1 meter from surface of unit55.00 dBA
Online Thermal Dissipation184.00 BTU/hr
Conformance
Regulatory ApprovalsC-tick, CE, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE
Standard Warranty3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
Sustainable Offer Status
RoHSCompliant
REACHREACH: Contains No SVHCs
PEPAvailable in Documentation tab
EOLIAvailable in Documentation tab
