Apc Smartups 1500va 230v Ups 900w Smc1500i

SKU
232532
Brand
Warranty
1 Year Manufacturer's return to base

No Longer Available

$788.00
Buy Now And Earn 788 Reward Points!

SMC1500IFeatures

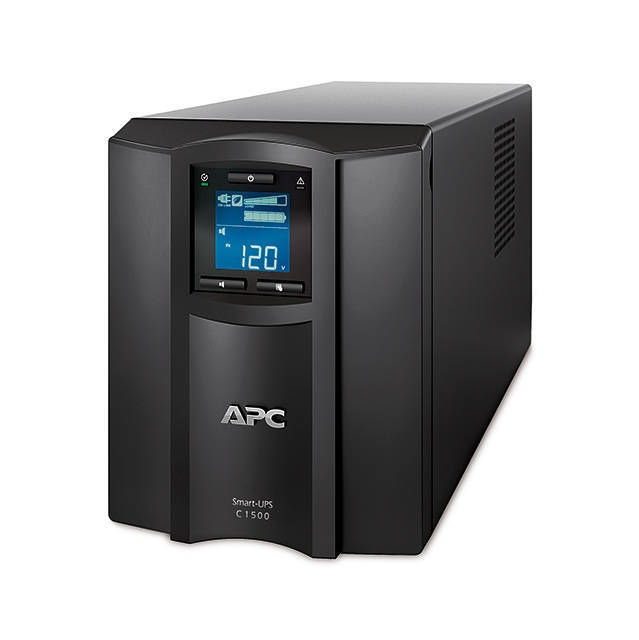

APC Smart-UPS C 1500VA LCD 230V

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utlility costs, generates less heat.
  • LCD Status Display
    Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPSFeatures & Benefits

Adaptability
  • Adjustable voltage-transfer points
    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity
    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Serviceability
  • Resettable circuit breakers
    Enables a quick recovery from overload events.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Predictive failure notification
    Provides early-warning fault analysis ensuring proactive component replacement.
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Manageability
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • Network manageable
    Provides remote power management of the UPS over the network.
  • Audible alarms
    Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Availability
  • Power conditioning
    Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Boost and Trim Automatic Voltage Regulation (AVR)
    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Marketing Features
  • Save time with easy and convenient remote accessibility
    Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
  • Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
    Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
  • Smarter productivity  with ability to tailor to your specific application needs
    Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
  • Avoids costly power problems by keeping your IT equipment and data safe and available
    Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
  • Peace of mind that comes with full equipment compatibility and reliability of a leader
    Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Safety
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Output

  • Output power capacity
    900Watts / 1.5 kVA
  • Max Configurable Power (Watts)
    900Watts / 1.5 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
  • Topology
    Line Interactive
  • Waveform type
    Sine wave
  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C14
  • Input voltage range for main operations
    180 - 287V
  • Input voltage adjustable range for mains operation
    170 - 300V
  • Other Input Voltages
    220, 240

Batteries & Runtime

Communications & Management

  • Interface Port(s)
    USB
  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO)
    --

Surge Protection and Filtering

  • Surge energy rating
    459Joules
  • Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    219mm , 21.9cm
  • Maximum Width
    171mm , 17.1cm
  • Maximum Depth
    439mm , 43.9cm
  • Net Weight
    24.09kg
  • Shipping weight
    27.23kg
  • Shipping Height
    376mm , 37.6cm
  • Shipping Width
    328mm , 32.8cm
  • Shipping Depth
    595mm , 59.5cm
  • Color
    Black
  • Master Carton Units
    1.0
  • Units per Pallet
    18.0

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    45.0dBA
  • Online thermal dissipation
    135.0BTU/hr

Conformance

  • Approvals
    C-tick, CE, CSA, ENERGY STAR (EU), GOST, UL 1778, VDE
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
Output
• Output power capacity:900 Watts / 1.5 kVA
• Max Configurable Power (Watts):900 Watts / 1.5 kVA
• Nominal Output Voltage: 230V
• Output Voltage Distortion: Less than 5% at full load
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Topology: Line Interactive
• Waveform type: Sine wave
• Output Connections: (8) IEC 320 C13 (Battery Backup)

Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Input voltage range for main operations: 180 - 287 V
• Input voltage adjustable range for mains operation: 170 - 300 V
• Other Input Voltages: 220, 240

Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time: 3 hour(s)
• Replacement Battery: RBC6
• RBC Quantity: 1
• Battery Volt-Amp-Hour Capacity: 220
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph

Communications & Management
• Interface Port(s): USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: configurable delays
• Emergency Power Off (EPO): --

Surge Protection and Filtering
• Surge energy rating: 459 Joules
• Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

Physical
• Maximum Height: 219, 21.9 cm
• Maximum Width: 171, 17.1 cm
• Maximum Depth: 439, 43.9 cm
• Net Weight: 24.09 kg
• Shipping weight: 27.23 kg
• Shipping Height: 376, 37.6 cm
• Shipping Width: 328, 32.8 cm
• Shipping Depth: 595, 59.5 cm
• Color: Black
• Master Carton Units:1.0

Environmental
• Operating Environment: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0-3000 meters
• Storage Temperature: -15 - 45 °C
• Storage Relative Humidity: 0 - 95 %
• Storage Elevation: 0-15000 meters
