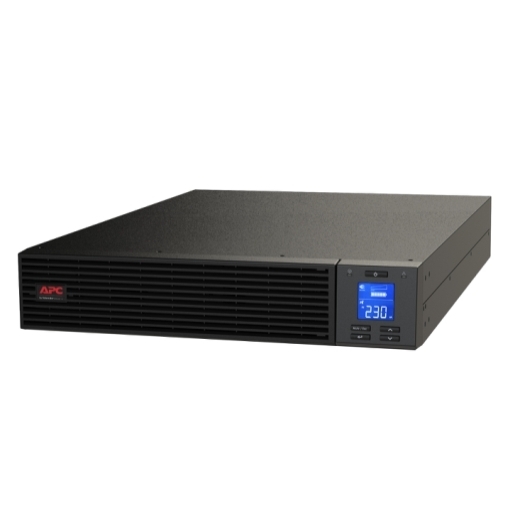

APC Srv1Krirk Easy Ups Rackmount 1000Va Lcd Display 6 X Iec 2 Year Warranty Srv1Krirk

SKU
292644
Brand
Apc
Manufacturer Link
MPN
SRV1KRIRK
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
Preorder (Contact Us)
Freight Estimate
$1,004.00
Buy Now And Earn 1004 Reward Points!
Add to Compare
Output power capacity
800Watts / 1.0kVA
Rack Height
2U
Output Connections
(3) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC-320 C14
Cord Length
1.48meters
APC Easy UPS On-Line SRV RM 1000 VA 230V with Rail Kit
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting support rails, USB cable, User Manual
  • Automatic internal bypass
    Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Automatic updates and backups
    Updates and backups are automatically applied to always provide the most current solution.
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Serial connection
    Use your PC to access additional power protection and management features for your UPS via a serial port.
  • USB connection
    Use your PC to access additional power protection and management features for your UPS via a USB Port.

Output

Max Configurable Power (Watts)
800Watts / 1.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Transfer Time
4ms typical
Bypass
Internal Bypass (Automatic and Manual)

Input

Input frequency
40 - 70 Hz
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280 (half load)V
Number of Power Cords
1
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
4hour(s)
Battery Charge Power (Watts)
38Watts
Battery Volt-Amp-Hour Capacity
152
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
DB-9 RS-232, Smart-Slot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
--
Available SmartSlot™ Interface Quantity
1
