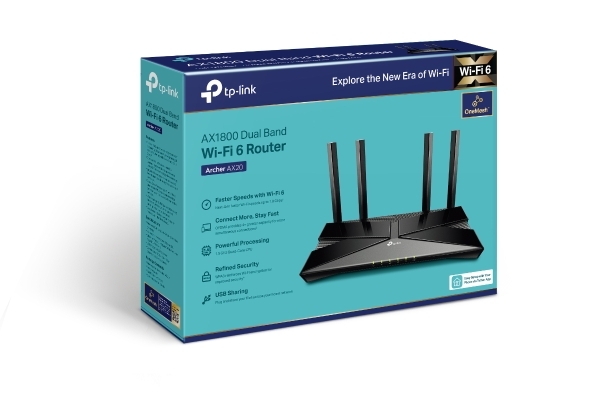

TP-Link Archer AX20 AX1800 Wi-Fi 6 Router

SKU
407154
Brand
MPN
Archer AX20
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$173.00
Buy Now And Earn 173 Reward Points!
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor Dual-Core CPU (V3)
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
USB Support 1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power V1, V2: 12 V ⎓ 1.5 A
V3: 12 V ⎓ 2.0 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN/ PPTP/ L2TP VPN Server
VPN Client OpenVPN/ PPTP/ L2TP VPN Client
SOFTWARE
Protocols IPv4
IPv6
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm
11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm
11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm
11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-97dBm
11n HT20_MCS0:-97dBm
11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm
11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm
11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm
11ax HE40_MCS11:-61dBm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package Contents Wi-Fi Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
