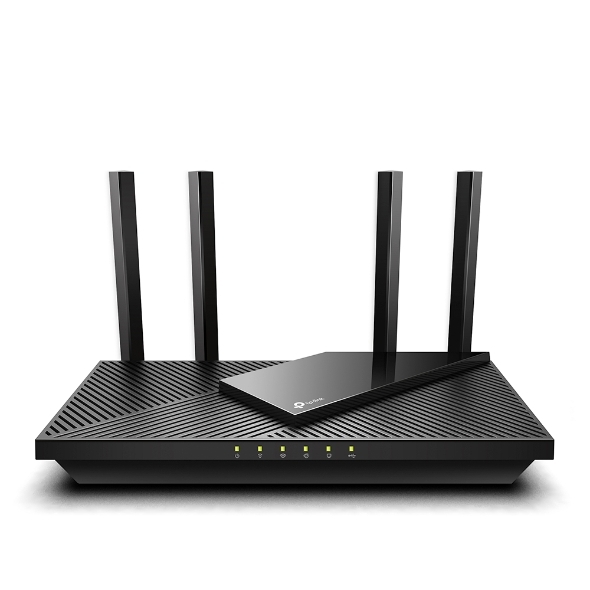

Tp-Link Archer AX3000 Wi-Fi 6 Dual-Band Router, Easymesh, 2.5GbE(1), GbE(4) 3YR ARCHER AX55 PRO
SKU
397547
Brand
MPN
ARCHER AX55 PRO
Warranty
Standard Manufacturer's Warranty
$177.00
Buy Now And Earn 177 Reward Points!
Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
Ultra-Low Latency—Enables more responsive gaming and video chatting.
Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals.
Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
Ultra-Low Latency—Enables more responsive gaming and video chatting.
Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX3000 • 5 GHz: 2402 Mbps (802.11ax, HE160) • 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses • 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range • High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High • Dual-Band Allocate devices to different bands for optimal performance • OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients • Airtime Fairness Improves network efficiency by limiting excessive occupation • DFS Access an extra band to reduce congestion • 4 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| HARDWARE | |
|---|---|
| Ethernet Ports | • 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi/WPS Button Power On/Off Button Reset Button |
| Power | • 12 V/ 2 A (US Version) • 12 V/ 1.5 A (EU Version) |
| SECURITY | |
|---|---|
| WiFi Encryption | • WPA3* • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls • Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | • CE: <20dBm(2.4GHz) <23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz) <30dBm (5.47GHz~5.725GHz) • FCC: <30dBm (2.4GHz) <30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz) <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz) |
| WiFi Reception Sensitivity | • 2.4 GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm • 5 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm, 11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
| Package Contents | • Wi-Fi Router Archer AX55 Pro • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
