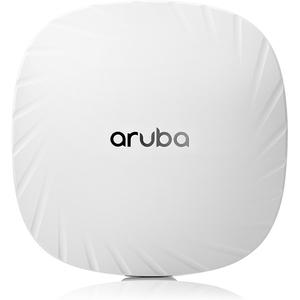

Aruba Ap-505 (Rw) Unified Ap R2H28A
These affordable Wi-Fi 6 access points provide high -performance connectivity
for any organization experiencing growing numbers of mobile, IoT and mobility
requirements. With a maximum aggregate data rate of 1.77 Gbps (1.774 Gbps), they
deliver the speed and reliability needed for venues and workplaces such as
schools, midsize offices and retailers. INCREDIBLE
EFFICIENCY
The 500 Series APs are also designed to optimize user experience by maximizing
Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Orthogonal frequency-division multiple access (OFDMA),
bi-directional multi-user MIMO and cellular optimization. With up to 2 spatial
streams (2SS) and 80MHz channel bandwidth (HE80), the 500 Series provides
groundbreaking wireless capabilities for budget-conscious deployments. Read the
Multi-User 802.11ax white paper for further information. Advantages
of OFDMA
This capability allows Aruba's APs to handle multiple Wi-Fi 6 capable clients on
each channel simultaneously, regardless of device or traffic type. Channel
utilization is optimized by handling each transaction via smaller sub-carriers
or resource units (RUs), which means that clients are sharing a channel and not
competing for airtime and bandwidth. Aruba
Air Slice™ for Extended Application Assurance
Initially, APs in controller-less mode (Instant) can provide SLA -grade
performance by allocating radio resources, such as time, frequency, and spatial
streams, to specific traffic types. By combining Aruba's Policy Enforcement
Firewall(PEF) and Layer 7 deep packet inspection (DPI) to identify user roles
and applications, the APs will dynamically allocate the bandwidth needed.
Non-Wi-Fi 6 clients can also benefit. Air Slice™ for APs uses Aruba Central for
management. Controller-based APs will be supported in a future software release. Multi-user
MIMO (MU-MIMO)
The 500 Series AP supports downlink MU-MIMO just like Wi-Fi 5 (802.11ac Wave 2)
APs. The added benefit is the ability to multiply the number of clients that can
now send traffic, thus optimizing client-to-AP spatial stream diversity. Wi-Fi
6 and MU-MIMO aware client optimization
Aruba's patented AI-powered ClientMatch technology eliminates sticky client
issues by placing Wi-Fi 6 capable devices on the best available AP. Session
metrics are used to steer mobile devices to the best AP based on available
bandwidth, types of applications being used and traffic type - even as users
roam.
Aruba Advanced Cellular Coexistence (ACC)
This feature uses built-in filtering to automatically minimize the impact of
interference from cellular networks, distributed antenna systems (DAS), and
commercial small cell or femtocell equipment. Intelligent
Power Monitoring (IPM)
Aruba APs continuously monitor and report hardware energy consumption. They can
also be configured to enable or disable capabilities based on available PoE
power - ideal when wired switches have exhausted their power budget.
Green AP energy efficiency
Aruba Wi-Fi 6 APs utilize analytics from NetInsight to automatically transition
in and out of a sleep mode based on client density. Learn more in the Green AP
At-A-Glance.
Interfaces/Ports | |
---|---|
Ethernet Technology: | Gigabit Ethernet |
Management Port: | Yes |
Number of Network (RJ-45) Ports: | 1 |
PoE PD Port: | Yes |
USB: | Yes |
Miscellaneous | |
---|---|
Environmentally Friendly: | Yes |
Physical Characteristics | |
---|---|
Depth: | 161 mm |
Form Factor: | Ceiling Mountable |
Height: | 37 mm |
Weight (Approximate): | 500 g |
Width: | 160 mm |
