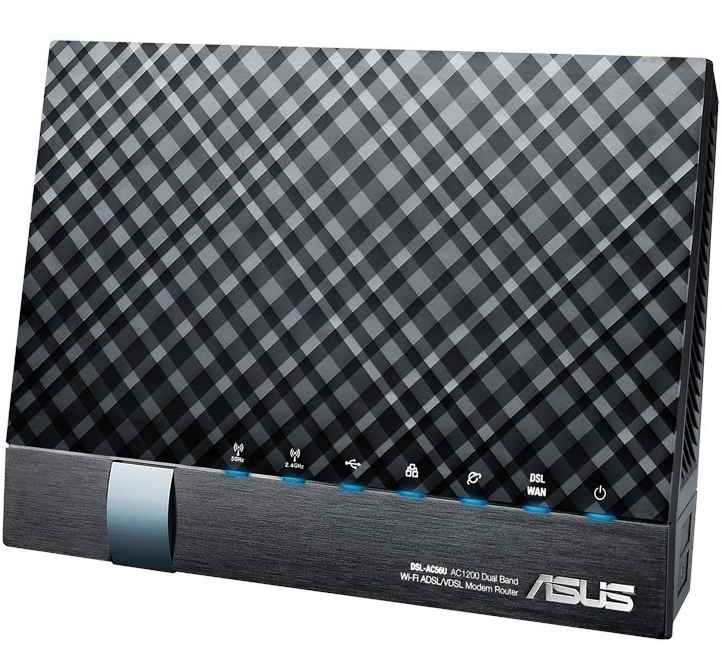

ASUS DSL-AC56U AC1200 802.11ac Dual-Band VDSL/ ADSL Modem Router DSL-AC56U

Name: ASUS DSL-AC56U AC1200 802.11ac Dual-Band VDSL/ ADSL Modem Router DSL-AC56U
Brand: Asus
SKU: 218124
Availability: OutOfStock

SKU

218124

Brand

Asus

Manufacturer Link

Manufacturer Product Link

Warranty

1 Year Manufacturer's return to base

No Longer Available

$0.00

Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

New Page 1

This product is elegible for up to $20 cashback with ASUS' Christmas promotion
Click here for promotional details and end-user redemption information

*Offer ends 31/12/2016

Future-proofed versatility with 802.11ac wireless speeds

The ASUS DSL-AC56U is a ADSL/VDSL 802.11ac 2x2 Wi-Fi modem router, with combined dual-band data rates of up to 1167Mbps. On the 5GHz band, 802.11ac gives 867Mbps wireless data rates, while 2.4 GHz 802.11n performance supports 300Mbps. Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services, the top specification completes future-proofing.
ASUS AiRadar enhances the Wi-Fi stability and improves coverage up to 150%*. Most importantly, the universal beamforming not only works on 802.11ac clients, but also 802.11a/b/g/n clients. Equipped with powerful hardware NAT acceleration and built-in Gigabit Ethernet, the DSL-AC56U gives you full Gigabit internet performance, with a WAN-to-LAN throughput performance of over 900 Mbps.
Two USB 2.0 ports allow the DSL-AC56U to share printers and scanners over a network, and it can also operate as high-speed NAS (Network Attached Storage) device when external storage is connected.
The easy-to-use ASUSWRT graphical user interface unlocks the power of the DSL-AC56U giving robust control to optimize your network for you. 30-second set-up and easy traffic management means even network newbies can enjoy its sophisticated features, while power users will love its Download Master, IPv6 support, multiple wireless SSIDs and secure VPN access.

Enhanced signal range and stability

ASUS AiRadar intelligently improves wireless connections by using exclusive ASUS RF fine-tuning. This ensures extended coverage, dynamic data speed increases, and enhanced stability.

Total flexibility with DSL, Ethernet or 3G/4G LTE Internet connections

DSL-AC56U has multiple ways to connect to the Internet, with a choice of DSL, Ethernet or 3G/4G LTE*. You can use DSL-AC56U as a DSL modem Wi-Fi router or a standalone Wi-Fi router according to your needs. And with the ability to switch instantly between connections if one fails (and switch back again when it’s fixed) or combine multiple connections for more bandwidth, it’s perfect for reliable, always-on internet connectivity. *Requires compatible USB dongle

Gigabit Internet browsing with hardware NAT

Equipped with a powerful hardware NAT acceleration engine and built-in Gigabit Ethernet, the DSL-AC56U gives you full Gigabit performance. Its WAN-to-LAN throughput performance is over 900 Mbps, which is more than 4.5 times that of traditional software-based NAT Gigabit routers. This reduces the possibility of bottlenecks on fast internet connections.

Add external storage, printers, and other devices to your network

Make DSL-AC56U your media and device center. With built-in two USB ports, connect external storage drives, printers, scanners and many other USB-enabled devices to share with your networked PCs. Having your devices networked, lets you access them easier than ever before.

Robust control and optimization with DSL ASUSWRT

With the DSL-ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. The whole-new dashboard interface lets you manage all clients and settings via a single graphical interface, and provides 1-click updates. Try our ASUSWRT.

ASUS AiCloud – Your world on demand

ASUS AiCloud keeps you connected to your data wherever and whenever you have an internet connection. It links your home network and online web storage service and lets you access it through the AiCloud mobile app on your iOS or Android smartphone or through a personalized URL in a web browser. Learn more.

Download and stream anywhere

Download Master and enhanced media server let you download and play multimedia files stored on router-attached USB storage on a wide range of compatible devices such as PC, pad, PS4, Xbox, and smart TV. Download Master can also download files while your PC is turned off, and allows you to manage and monitor download status remotely.

Better online multitasking at up to 300,000 sessions

Massive online multitasking at up 300,000 concurrent data sessions gives you 20 times the capacity of mainstream routers, allowing for great performance with no slowdown even during heavy traffic sessions. Multiple downloads occur at the same time to create a smoother user experience. More data sessions translate into quicker and buffer-less HD streaming plus lag-free online gaming even while you download content, so you can do more without compromising your online lifestyle.

VPN server and VPN client support

DSL-AC56U offers a simple VPN server and VPN client setup to access a home network or the internet privately and securely. Easily set up a VPN server with PPTP protocol support with no need for paid VPN services or a dedicated VPN server. DSL-AC56U also turns your network-connected devices into VPN-enabled clients via PPTP and L2TP protocols without additional VPN software required.

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
Product Segment
AC1200 enhanced AC performance : 300+867 Mbps
Wi-Fi Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
xDSL Data Rate
‧VDSL2/ADSL2+/ADSL2/ADSL multimode
‧Support Annex A/B/I/J/L/M
‧Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
‧VDSL2 interface compliance with ITU-T G.993.2
‧ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
‧ITU-T G.992.2 (G.lite), Annex A, and B Compliant
‧ANSI T1.413 Compliant
‧ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
‧ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
‧ITU-T G.993.2 Compliant, Annex A, B
‧ITU-T G.993.5 (Vectoring)
‧ITU-T G.998.4 (G.inp) Improved impulse noise protection
‧ATM and PTM (dual-priority)

VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps
Features
‧DHCP server, firewall/NAT, DynDNS
‧VPN server(PPTP/OpenVPN)
‧VPN client(PPTP/L2TP/OpenVPN)
‧Dual WAN Fail over/Fail back/Load balance
‧Traffic monitor/Quality of Service (QoS)
‧DSL spectrum
‧IPTV(VDSL/ADSL WAN)
‧DSL feedback mechanism
‧Save/Resotre configuration file
‧WiFi Bandwidth Limiter
Antenna
Internal dBi antenna x 4
LED Indicator
Power, Internet, LAN x 1, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, USB x 1
Button
WPS Button, Reset Button, Power Button, Wireless on/off Button
Ports
4 x RJ45 10/100/Gigabits BaseT for LAN
1 x RJ45 10/100/Gigabits BaseT for WAN
1 x RJ11 for xDSL
USB Ports
USB 2.0 x 2
USB Applications
Printer Server
FTP Server
Download Master
3G/4G sharing
Router Special Features
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
Operating Frequency
2.4GHz
5GHz
Operation Channel
13 Europe (ETSI)
Memory
128MB NAND flash/256MB DDR3
Output Power
ac mode : 18 dBm
b mode : 20.5 dBm
g mode : 18.5 dBm
n mode : 17.5 dBm
a/n mode : 20 dBm
Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
Utilities
- Download master:
．Support BT, NZB, HTTP, ED2K
．Support encryption, DHT, PEX and magnet link
．Upload and download bandwidth control
．Download scheduling

- Media server:
．Image: JPEG
．Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
．Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

- Printer Server:
．Multifunctional printer support(Windows only)
．LPR protocol support
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
Power Adapter
AC Input : 110 ~240 V(50~60HZ)
DC Output : 12 V/2 A
Power Consumption : 24 W Max.
Certificates
CE, Telepermit, RCM
Dimensions
20.5 x 6.6 x 14.7 ~ cm (WxDxH)
Weight
400 g (Device Only)
OS Support
Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® XP
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Package Content
‧DSL-AC56U Dual-band 802.11ac VDSL/ADSL Modem Router
‧RJ-45 cable
‧RJ-11 cable
‧Support CD(User manual and utility)
‧Power adapter
‧Warranty card
‧Quick start guide
‧Splitter (varies with regions)
