Asus Pce-ac88 Dual-band & Quad-stream Ac3100 Pci-e Wireless Adapter Nitroq (1024-qam) Technology

SKU
252807
Brand
Asus
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$165.00
Buy Now And Earn 165 Reward Points!

QUICK OVERVIEW

aluminum heatsink 4xantennas Low Profile Brk PCE-AC88
Add to Compare

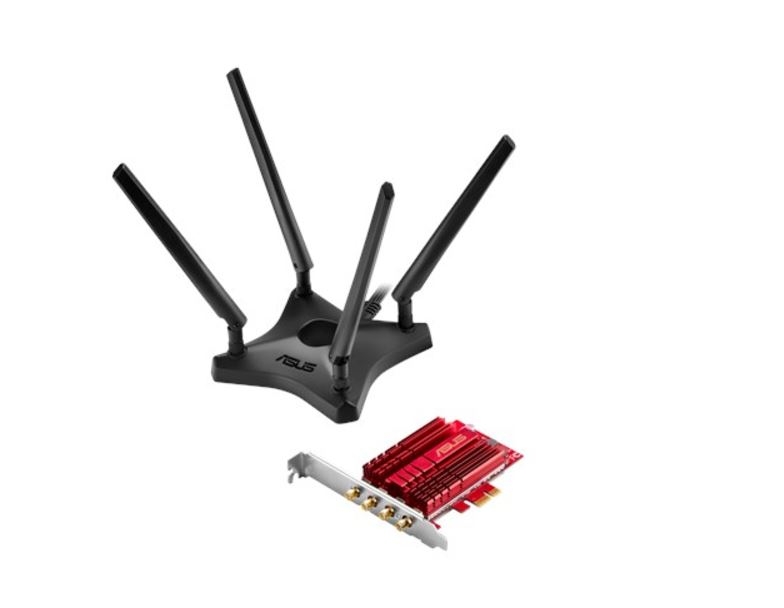

ASUS PCE-AC88 4x4 802.11ac Wifi AC3100 PCIe adapter

  • Dual-band 4x4 AC3100 Wifi with speeds up to 2100Mbps (5GHz band) and 1000Mbps (2.4GHz band)
  • External magnetic antenna base allows flexible antenna placement to maximize coverage
  • Individual antennas can also attach directly to PCIe card for compact installation
  • Custom heatsink effectively dissipates heat for improved stability and reliability.
  • R-SMA antenna connectors enable compatibility with a variety of aftermarket antennas

ASUS PCE-AC88 is a dual-band AC3100 4x4 Wi-Fi PCI Express® (PCIe®) adapter for desktop PCs. Its NitroQAM™ (1024-QAM) technology delivers combined wireless speeds of up to 2100Mbps on the 5GHz band and 1000Mbps on the 2.4GHz band — 60% faster than 3x3 adapters, ensuring smooth streaming and low-latency online gaming1. It’s the first 4x4 802.11ac PCIe® adapter on the market, giving you improved Wi-Fi reception and — when paired with a 4x4 router — the full performance potential of 4x4 Wi-Fi!

Enjoy 60% faster Wi-Fi on your desktop

NitroQAM™ (1024-QAM) technology gives PCE-AC88 Wi-Fi speeds of up to 2100Mbps (5GHz) and 1000Mbps (2.4GHz), so you can enjoy smooth streaming and low-latency online gaming on your desktop PC.

Unrivaled Wi-Fi reception with the first ever 4x4 adapter

With a four-transmit, four-receive (4x4) antenna design, Wi-Fi range and signal stability are improved dramatically for faster, clearer and stronger Wi-Fi. PCE-AC88 pushes your desktop’s Wi-Fi reception to higher level, and allows you to unlock the full potential of your 4x4 router!

Flexible antenna placement

PCE-AC88 includes extension cables for its detachable antennas, plus a magnetized antenna base that can be attached to any suitable surface – horizontal or vertical. This makes it incredibly easy to find the best antenna location for optimum signal quality.

Custom heatsink for best stability

The stylish, customized heatsink is crafted for non-stop operation, giving you improved stability and reliability for connections when running bandwidth-intensive network tasks in hot environments.

　

Keep Up to Date!

Remember to always keep your device’s firmware up to date so you can benefit from the very latest service and security enhancements — and get exciting new features!

  • Product Segment
    AC3100 ultimate AC performance : 1000+2167 Mbps
  • Interface
    PCI Express
  • Data Rate
    802.11 b/g/n/ac : downlink up to 1000 Mbps, uplink up to 1000 Mbps (20/40MHz)
    802.11 a/n/ac : downlink up to 2167 Mbps, uplink up to 2167 Mbps (20/40/80MHz)
  • Antenna
    4 x R SMA Antenna
  • Operating Frequency
    2.4 GHz / 5 GHz
  • Operation Channel
    11 for N. America, 13 Europe (ETSI)
  • Output Power
    ac mode : 18 ~21.5 dBm
    b mode : 24 dBm
    g mode : 22.5 ~24 dBm
    n mode : 21 ~24 dBm
    a/n mode : 19.5 ~24 dBm
  • Modulation
    1024QAM
  • Utilities
    Wireless setting
  • Certificates
    CE, FCC, C-Tick, IC, IDA, NCC, RCM
  • Dimensions
    4.06 x 2.71 x 0.82 inch (WxDxH) ~ cm
  • Weight
    125 g (Device Only)
  • Environmental
    Operating Temperature: 0 °C to 40 °C ( °F to ºF)
    Storage Temperature: -20 ° to 65 ° C ( °F to °F)
    Operating Humidity: 10 % to 90 % (Non-condensing)
    Storage Humidity: 10 % to 90 % (Non-condensing)
  • OS Support
    Windows® 10 86x64
    Windows® 7 86x64
  • Package Content
    AC Adapter
    Dipole Antenna x 4
    Gigabit Network Cable
    External magnetic antenna base
    Warranty card
  • Note
    Support MU-MIMO technology
AC3100 Dual-Band PCIe® Wi-Fi Adapter

Instantly upgrade your desktop to ultra-fast Wi-Fi speeds
60% faster Wi-Fi speeds with wider Wi-Fi range than 3x3 AC adapters – for smooth streaming and online gameplay
Flexible antenna placement
Magnetized antenna base let you choose the best antenna location for optimum signal reception
Specialized heatsink design
Non-stop operation for improved stability and reliability

◎Dualband 11ac (AC3100)
◎802.11ac 2100Mbps+802.11n 1000Mbps (2,4GHz Turbo QAM, 5GHz 1024 QAM )
◎WiFi PCI-E card

* 802.11ac 2100Mbps@5GHz+802.11n 1000Mbps datarate@2.4GHz
* Dual-band: 2.4GHZ & 5GHZ selectable
* 4 Mu-MIMO antenna (4T4R)
* Beamforming
* Flexible Antenna Pcaement ( 3 way)
* Custom Heat Sink
