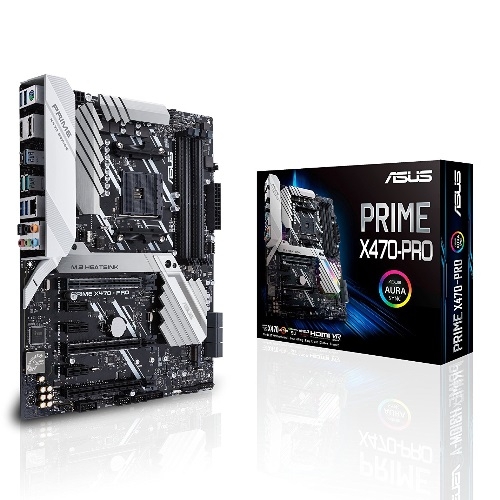

Asus Prime X470-pro Atx Mb 4xddr4 6xpcie 1xm.2 6xsata Raid 8xusb3 1xdp 1xhdmi Prime X470-pro
No Longer Available
AMD AM4 ATX motherboard with M.2 heatsink, DDR4 3466MHz, dual M.2, HDMI, SATA 6Gbps and USB 3.1 Gen 2 front-panel connector
- ASUS 5-Way Optimization: One-click, system-wide tuning for optimized overclocks and intelligent cooling for CPU- or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via the Fan Xpert 4 software or the acclaimed ASUS UEFI
- M.2 heatsink: Ultra-efficient design reduces M.2 SSD temperature by up to 20°C for unthrottled transfer speeds and enhanced reliability
- Next-gen connectivity: Supreme flexibility with dual M.2 support, NVME RAID support, USB 3.1 Gen 2 ports and front-panel header
- ASUS Aura Sync: Industry-leading RGB ecosystem, with controllable onboard LEDs and wide range of Aura Sync-compatible components
ASUS Prime motherboards provide the solid foundation needed for your initial build, plus flexibility to grow with your ambitions. With essential ASUS design and engineering, you benefit from as automated system tuning, comprehensive cooling controls, and immersive onboard audio.
Overview
Powered by AMD Ryzen 2 AM4 processors, the ASUS Prime X470-Pro delivers customizable performance. 5-Way Optimization provides intelligent auto-tuning and dynamic fan calibration, while on-board dual NVMe M.2 and USB 3.1 Gen2 deliver maximum transfer speeds. Outshine the competition and personalize your build with Aura Sync RGB.
- Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors
- 5-Way Optimization with auto-tuning and Fan Xpert 4
- Patent-pending SafeSlot for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
- Aura Sync RGB lighting features a nearly endless spectrum of colors
- 8-channel HD audio with Realtek S1220A codec
Features
Awaken the true potentialFeaturing an array of trace layout tweaks that improve memory stability, Prime X470-Pro provides a potent foundation for your build. With comprehensive support for the full gamut of Ryzen memory configurations – from entry-level to performance-oriented — Prime X470-Pro is a versatile all-rounder that can work or play. | Reliable cooling and stabilityPrime X470-Pro features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS. Each onboard header supports auto-detection of PWM or DC fans. | Outshine the competitionPrime X470-Pro features ASUS Aura RGB for illumination that's aesthetic or informative. ASUS Aura software offers control over hundreds of colors and dozens of effects. Use it to control built-in LEDs or LED strips and other Aura Sync-compatible gear connected to the onboard headers. |
Keep your SSD coolerPrime X470-Pro has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity. | SafeSlotManufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. | Ultrafast connectivityWith x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. Prime X470-Pro's front panel USB 3.1 Gen 2 connector is ready for next-gen PC cases and devices. Lastly, with backward-compatible USB 3.1 Gen 2 Type-A, you'll experience blazing data-transfer speeds of up to 10Gbps. |
- CPUAMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list - ChipsetAMD X470
- MemoryAMD Ryzen™ 2nd Generation Processors
4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - GraphicIntegrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively) - Multi-GPU SupportAMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD CrossFireX™ Technology
AMD Ryzen™ with Radeon™ Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors
Supports AMD CrossFireX™ Technology - Expansion SlotsAMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X470 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1 - StorageAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-Series/Athlon X4 Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X470 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*3
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10 - LANIntel® I211-AT
- AudioRealtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- EMI protection cover to prevent electrical noise to affect the amplifier quality - USB PortsAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A)
AMD X470 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X470 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A + USB Type-CTM, 2 at mid-board)
AMD X470 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A) - Special Features5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 10 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS TPU :
- Auto Tuning
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Turbo APP
- featuring system performance tuning for selected applications - Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)Type-A,
1 x USB 3.1 Gen 1 USB Type-CTM,
5 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s) - Internal I/O Ports2 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x T_Sensor Connector
1 x USB 3.1 Gen 2 front panel connector - AccessoriesUser's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector(s) (1 in 1) - BIOS256 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect)memory information
- ManageabilityWOL by PME, PXE
- Operating SystemWindows® 10 64-bit
- Form FactorATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - Note*1.The PCIe x16_3 slot shares bandwidth with PCIe x1_1 and PCIe x1_3
*2 The M.2_2 socket shares PCIe clock with PCIe x1_1. When PCIe x1_1 or PCIe x1_3 is occupied, the M.2_2 socket can only support SATA mode.
*3 Supports PCIe RAID configurations via onboard M.2 storages.
