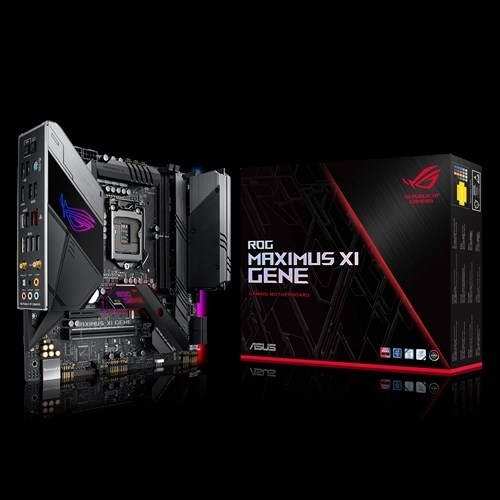

Asus Rog Maximus Xi Gene Z390 Matx Motherboard Rog Maximus Xi Gene

SKU
271873
Brand
Asus
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$649.00
Buy Now And Earn 649 Reward Points!
Add to Compare

Intel Z390 mATX gaming motherboard with 802.11ac Wi-Fi, double-capacity DIMM support, ROG DIMM.2 dual M.2 expansion card, Aura Sync RGB LED, DDR4 4800MHz, four M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2

  • LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors.
  • Double-capacity DIMM: Optimized memory trace layout for dual 32GB DIMM support.
  • Perfected cooling: Dedicated water-cooling zones, M.2 heatsink and flexible fan controls.
  • ROG DIMM.2: Vertically-installed dual-M.2 expansion card with heatsink for maximum cooling and performance.
  • Overclocker’s toolkit: Hardware-level controls to aid with subzero overclocking.
  • 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig.
  • Gaming connectivity: Intel Gigabit Ethernet, four M.2, USB 3.1 Gen 2, and CNVi 2x2 802.11ac Intel integrated Wi-Fi with MU-MIMO support for lightning-fast data transfers.
  • Gaming audio: High-fidelity sonics that draw you deeper into the action, with SupremeFX and Sonic Studio III.
  • Synchronized RGB lighting technology: Works with a vast portfolio of Aura Sync-capable PC gear and includes support for Philips Hue.
  • Gaming durability: ASUS SafeSlot, patented pre-mounted I/O shield and premium components for maximum durability

With industry-first support for double-capacity DDR4 memory, comprehensive cooling and four M.2 slots for unthrottled SSD RAID storage, Maximus XI Gene lets you maximize the power of your SFF rig to achieve the performance of high-end ATX systems in a much more compact package.

　

CONTROL YOUR RIG

ROG provides the best firmware and utilities to give you complete control of your system. With powerful overclocking via the acclaimed UEFI BIOS or automatic 5-Way Optimization, audio profile tweaking and intuitive tools to optimize storage and networking performance, Maximus XI Gene comes with everything you need to customize your experience exactly how you want.

CONTROL YOUR RIG
　

PERSONALIZED FOR YOU

ROG works extensively with industry partners and performs extensive testing to ensure Maximus XI Gene provides seamless compatibility with a wide range of graphics cards, DRAM modules, coolers, cases and other components and peripherals. Together with AURA RGB lighting that synchronizes with a vast ecosystem of compatible products, Maximus XI Gene is primed for endless personalization.

　

THE POWER OF INTEL


Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors

This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.


Intel Z390 chipset

The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

  • CPU
    Build in Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® Turbo Boost Technology 2.0
    * Refer to www.asus.com for CPU support list
  • Chipset
    Build in Intel® Z390
  • Memory
    Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
    2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Double Capcity DRAM support depends on the DRAM models
  • Graphic
    Integrated Graphics Processor- Intel® UHD Graphics support
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
    　
  • Expansion Slots
    Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
    1 x PCIe 3.0 x16
    Intel® Z390 Chipset
    1 x PCIe 3.0 x4
  • Storage
    Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors :
    2 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    Intel® Z390 Chipset :
    2 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
    Intel® Z390 Chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s)
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Wireless Data Network
    Intel® Wireless-AC 9560
    Wi-Fi 802.11 a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
    Supports MU-MIMO
    Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth
    Bluetooth® 5.0
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output 113 dB SNR recording input
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Gold-plated jacks
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III + Sonic Studio Link
  • USB Ports
    Intel® Z390 Chipset :
    1 x USB 3.1 Gen 2 front panel connector port(s)
    Intel® Z390 Chipset :
    4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x Type-C)
    Intel® Z390 Chipset :
    8 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    Intel® Z390 Chipset :
    6 x USB 2.0 port(s)
  • ROG Exclusive Features
    ROG CPU-Z
    ROG CloneDrive
    Pre-mounted I/O Shield
    Slow Mode
    CMOS button
    Overwolf
    ReTry Button
    Safe Boot Button
    Start Button
    Reset Button
    LN2 Mode
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers
    Extreme Engine Digi+ :
    - MicroFine Alloy Chokes
    - 10K Black Metallic Capacitors
    Mem TweakIt
    Double Power :
    - Dual 8 -pin CPU
    USB BIOS Flashback®
    ROG Exclusive Software
    - RAMCache III
    - GameFirst V
    - Sonic Studio III + Sonic Studio Link
    - Sonic Radar III
  • Special Features
    AI Overclocking
    ASUS 5X Protection III :
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    Gamer's Guardian:
    - SafeSlot
    ASUS Optimem II：
    - Optimem (Improved DDR4 stability)
    - Improved DDR4 Stability
    ASUS Exclusive Features :
    - MemOK! II
    - Pre-mounted I/O Shield
    - ASUS NODE : hardware control interface
    - BIOS Flashback® Button
    - Clear CMOS Button
    - Reset Button
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert 4
    ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-LED (CPU, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    AURA: RGB Lighting Control
    Armoury Crate
  • Operating System Support
    Windows® 10 64-bit
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x HDMI
    1 x LAN (RJ45) port(s)
    3 x USB 3.1 Gen 2 (red)Type-A,
    1 x USB 3.1 Gen 2 (red)Type-C
    6 x USB 3.1 Gen 1 (blue)
    2 x USB 2.0
    1 x Clear CMOS button(s)
    1 x Wi-Fi antenna port(s)
  • BIOS
    1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
    　
  • Manageability
    WfM2.0, DMI3.0, WOL by PME, PXE
    　
  • Support Disc
    Overwolf
    1-year Anti-Virus software
    Daemon Tools Software
    WinRAR
    　
  • Form Factor
    mATX Form Factor
    9.6 inch x 8.9 inch ( 24.4 cm x 22.6 cm )
