Intel® 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list

Build in Intel® B365

Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD 2-Way CrossFireX Technology

1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max at x4 mode) *¹
1 x PCIe 3.0 x1

Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*²
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *

Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB (Line-out at rear) 113 dB SNR recording input
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

Intel® B365 Chipset :
2 x USB 3.1 Gen 2 port(s)
Intel® B365 Chipset :
6 x USB 3.1 Gen 1 port(s)
Intel® B365 Chipset :
6 x USB 2.0 port(s)

Pre-mounted I/O Shield
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
- Overwolf

Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Armoury Crate

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Anti-surge LAN (RJ45) port

1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x Clear CMOS jumper(s)

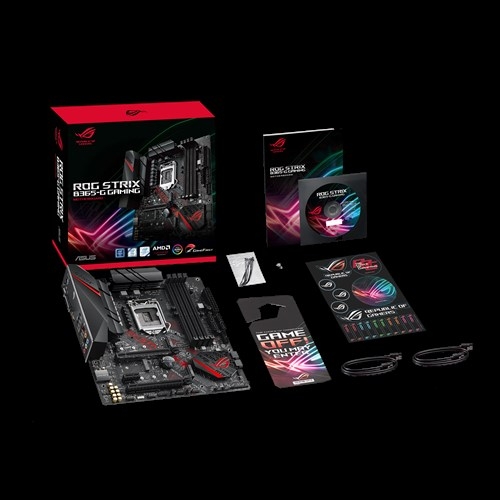

User's manual
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x CABLE TIE BLACK
1 x ROG Strix stickers

1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI6.1

WOL, PXE

Windows® 10 64-bit

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

*1 When the M.2 Socket with E key is occupied, PCIe x16_2 will run at x2 mode.
*2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device.
