Atdec Pop-Out Video Wall. Max load 50kg. VESA up to 600 x 400 ADB-VWP
SKU
294507
Brand
MPN
ADB-VWP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$498.00
Buy Now And Earn 498 Reward Points!
ADB-VWP

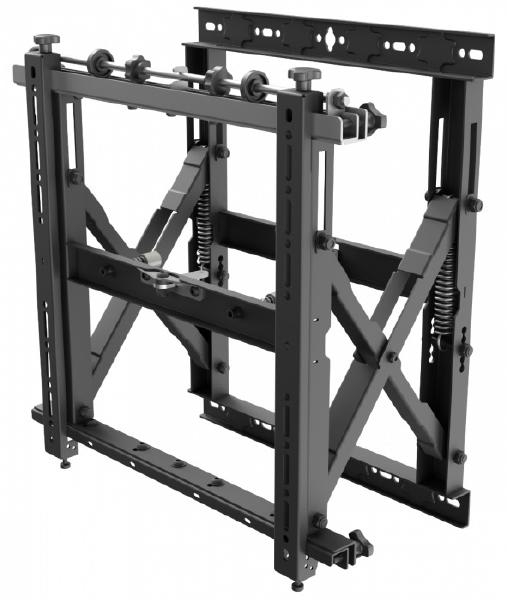

Pop-out video wall. Max load 50kg. VESA up to 600 x 400
Designed to make video wall installations as quick and simple as
possible, this modular video wall mount can be used to create
unlimited video wall configurations in both landscape and
portrait format. The pop-out system enables quick and easy
access to the rear of mounted screens for servicing.
- - Ideal video wall mount for recessed walls
- - Supports screens up to 50kg with VESA up to 400mm (or 600mm using included extensions)
- - Tool-free post-installation micro-adjustments at 4 corners
- - Landscape or portrait display installation
- - Push to open/close spring-assisted design with adjustable spring force
- - Simple "hook-on" display attachment
- - Safety screws help prevent unauthorised removal of screens
- - Optional padlock installation (padlock not included)
- - Includes additional brackets for VESA extension up to 600
- - Provides space for wall-mounted media devices up to 70mm deep
Product code: ADB-VWP
Material: Steel
Minimum display weight, kg: 0
Flat screen: maximum supported weight, kg: 50
VESA mounting hole pattern, mm: 100x100, 100x200, 200x100, 200x200, 200x300,
200x400, 200x600, 300x200, 300x300, 400x200, 400x300, 400x400, 400x600, 600x200,
600x400
Universal width (mm): 100 to 600
Universal height (mm): 100 to 400
Install Manual
Technical Specification
Product Brochure
Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The pop-out system enables quick and easy access to the rear of mounted screens for servicing.
⚫Ideal video wall mount for recessed walls
⚫Supports screens up to 50kg with VESA up to 400mm (or 600mm using included extensions)
⚫Tool-free post-installation micro-adjustments at 4 corners
⚫Landscape or portrait display installation
⚫Push to open/close spring-assisted design with adjustable spring force
⚫Simple "hook-on" display attachment
⚫Safety screws help prevent unauthorised removal of screens
⚫Optional padlock installation (padlock not included)
⚫Includes additional brackets for VESA extension up to 600
⚫Provides space for wall-mounted media devices up to 70mm deep
⚫10 year warranty
