Aten 16 Port 0U Eco Pdu Over Ip - 16A Input - Env Monitoring Via Opt Sensors And Ec1000 Pe1216G-Ax-G
• PE1216A: 100~120V; North America, Mexico, Japan, Taiwan
• PE1216B: 200~240V; North America, Mexico, Japan, Taiwan
• PE1216G: International

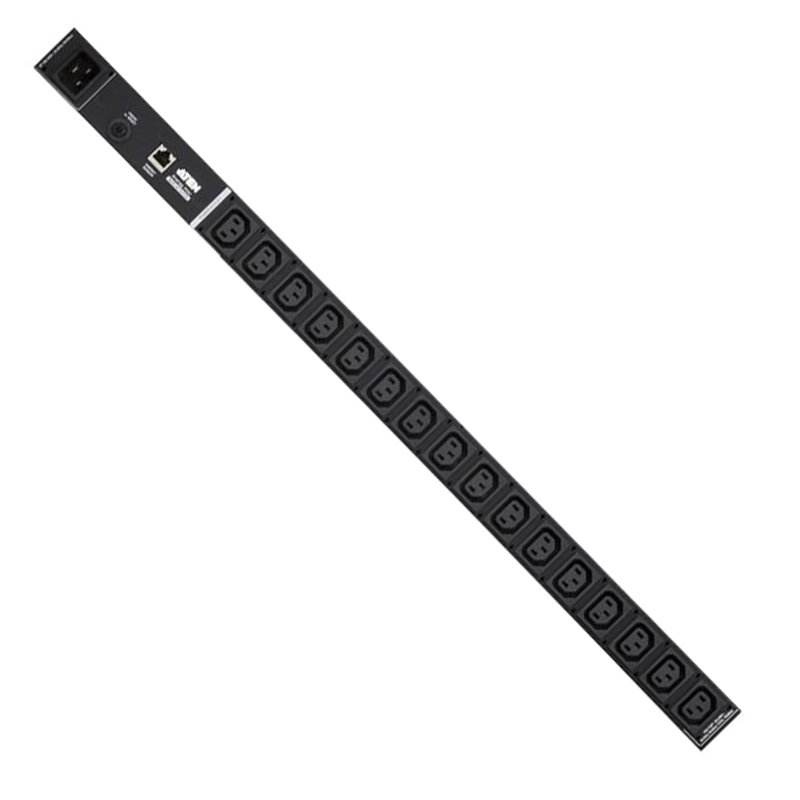

The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
The PE1216 Energy PDU can be integrated into an installation with the EC1000 Energy Box*, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely – making your server room efficiently green with ease.
* ATEN EC1000 Energy Box and energy management software – eco Sensors are available at www..aten.com.
Package Contents
- 1x PE1216 Energy PDU
- 1x Power Cord
- 1x Mounting Kit
- 1x User Instructions
- Space saving 0U rack mount design
- IEC or NEMA outlet models
- Real-time PDU current monitoring *
　
| Function | PE1216A | PE1216B | PE1216G |
| Electrical | |||
| Nominal Input Voltage | 100 – 120 VAC | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Input Current | 20A(Max) | 20A(Max) | 16A(Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-20P | NEMA 6-20P | IEC 60320 C20 |
| Input Power | 2400 VA(Max) | 4160 VA(Max) | 3680 VA(Max) |
| Outlet Type | Total: 16 x NEMA 5-15R | Total: 16 x IEC320 C13 | Total: 16 x IEC320 C13 |
| Nominal Output Voltage | 100 – 120 VAC | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Output Current (Outlet) | 15A(Max) | 15A(Max) | 10A(Max) |
| Maximum Output Current (Bank) | 20A(Max) | 20A(Max) | 16A(Max) |
| Maximum Output Current (Total) | 20A(Max) | 20A(Max) | 16A(Max) |
| Breakers | 1 x 20A Non-Fuse Breaker | 1 x 20A Non-Fuse Breaker | 1 x 16A Non-Fuse Breaker |
| Metering | Bank Level Current Monitoring (Via EC1000 Energy Box) | Bank Level Current Monitoring (Via EC1000 Energy Box) | Bank Level Current Monitoring (Via EC1000 Energy Box) |
