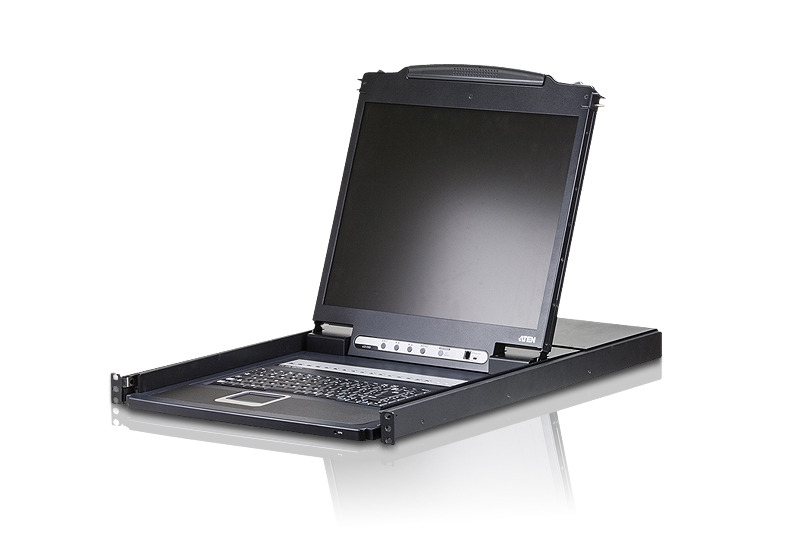

Aten 16 Port Rackmount Usb-Ps/ 2 Single Rail 19" Lcd Kvm Cascadable Multi-Platform Support Cl1316N-Ata-Au
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 19" LED-backlit LCD panel
- A single console controls up to 256 computers by cascade to 2 levels and connect up to 16 switches.
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
The CL1316 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1316 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
Package Contents
- 1x CL1316 LCD KVM Switch with Rack Mount Kit
- 2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
A single console controls up to 256 computers by cascade to 2 levels and connect up to 16 switches.
Integrated KVM console with 19" LED-backlit LCD panel
Dual Interface – supports computers with PS/2 or USB keyboards and mice
Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profi le for each
Auto Scan feature for monitoring user-selected computers
Broadcast mode – operations simultaneously performed on all selected computers
Hot pluggable – add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Rack mountable
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Computer Connections
Direct 16
Maximum 256 (via Cascade)
Port Selection OSD, Hotkey, Pushbuttons
Connectors
KVM Ports 16 x SPHD-17 Female (Yellow)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x 3-prong AC Socket (IEC60320/C14)
Switches
Reset 1 x Semi-recessed Pushbutton
Power 1x Rocker
Firmware Upgrade 1 x Slide
LCD Control 4 x Pushbutton
LCD On/Off 1 x Pushbutton
Ports 16 x Pushbutton
LEDs
Online 16 (Orange)
Selected 16 (Green)
Power 1 (Dark Green)
1 (Orange)
Lock 1 (Green)
Panel Spec
LCD Module 19" TFT-LCD
Pixel Pitch 0.294 mm x 0.294 mm
Support Color 16.7M colors
Contrast Ratio 1000:1
Luminance 250 cd/m²
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Emulation
Keyboard / Mouse PS/2, USB
Video
19" LCD 1280×1024 @ 75 Hz； DDC2B
Scan Interval 1 – 255
Maximum Input Power Rating 100-240 VAC; 50/60 Hz; 1A
Power Consumption AC110V:25.9W:121BTU
AC220V:26.1W:122BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Weight 12.77 kg ( 28.13 lb )
Dimensions (L x W x H) 48.30 x 68.92 x 4.40 cm
(19.02 x 27.13 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
