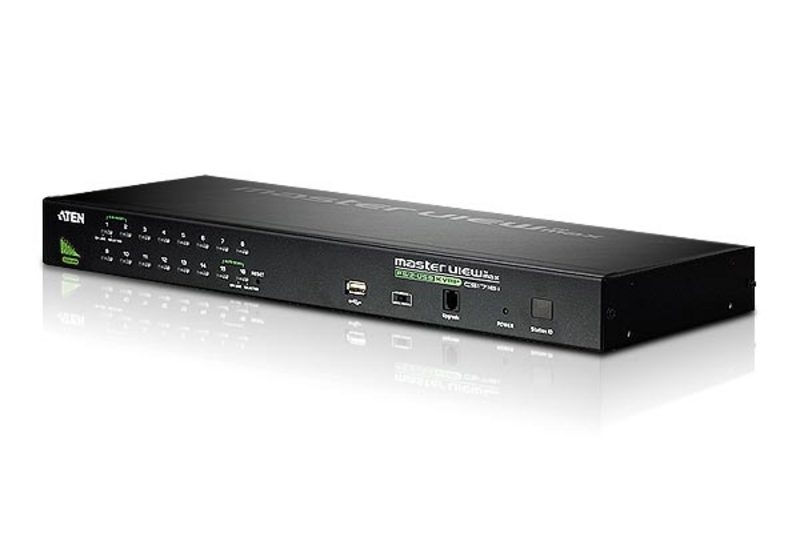

Aten 16 Port Rackmount USB-Ps/2 VGA Kvmp Switch With USB 2.0 Hub And Daisy Chain, Superior Video Quality - Up To 2048 X 1536; DDC2B CS1716A-AT-U
Package Contents
1x KVM Switch with Standard Rack Mounting Kit
1x Custom KVM Cable (VGA, USB; 1.8 m/6 ft)
1x Custom KVM Cable (VGA, PS/2; 1.8 m/6 ft)
1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x Firmware Upgrade Cable (1.8 m)
1x Foot Pad Set(4 PCS)
1x Power Adapter
1x User Instructions
Computer Connections
Direct 16
Maximum 512 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-15/17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female (Black)
USB Port 1 x USB Type A Female
Power 1 x DC Jack Female (Black)
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
Switches
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 – 255 Seconds (Default: 5 secs)
Power Consumption DC5.3V:5.31W:40BTU
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.85 kg ( 6.28 lb )
Dimensions (L x W x H) 43.72 x 15.99 x 4.40 cm
(17.21 x 6.3 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
