Aten 17" Lcd Kvm Slide Console Rackmountable Keyboard Cl-1000ma
DESCRIPTION

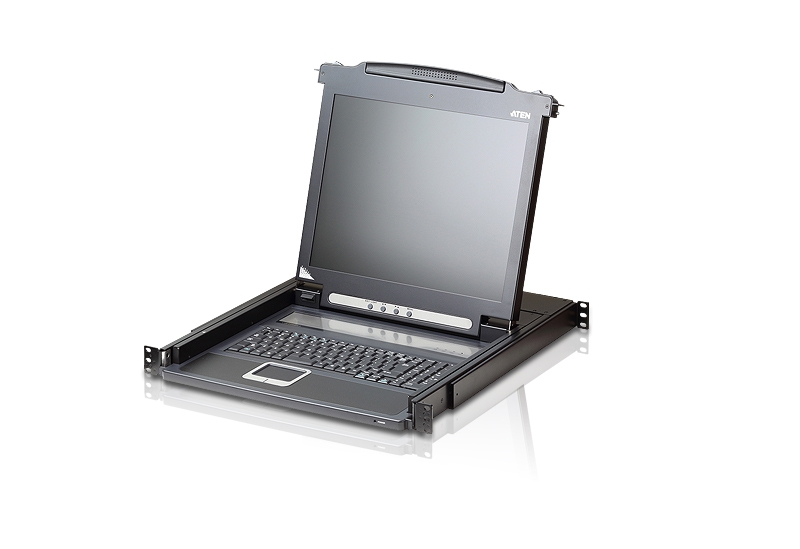

Integrated KVM console with 17" LCD monitor - in a Slideaway™ housing
• LCD module rotates up to 115 degrees for a more comfortable viewing angle
• Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack
• Compatible with most PS/2 KVM Switches
• Internal power built in
• Adjustable depth to fit within a rack
• High video resolution: ◦ Up to 1280 x 1024 @75Hz
◦ Supports DDC, DDC2, DDC2B
• DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor
• Keyboard Language support: English(US); English(UK); German; German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian
• Improved design - single person installation (optional)
• Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
| Package Contents |
|
| Feature |
|
| Connectors | KVM PortsKeyboard/ Video/Mouse1 x SPHD Female (Yellow)Power1 x 3-prong AC Socket |
| Switches | LCD Adjustment 4 x Pushbuttons Reset 1 x Semi-recessed Pushbutton Power 1 x Rocker |
| LEDs | Power 1 (Dark Green) Num Lock 1 (Green) Caps Lock 1 (Green) Scroll Lock 1 (Green) |
| Emulation | Keyboard / Mouse PS/2 |
| Video | 17" LCD 1280 x 1024; DDC2B |
| I/P Rating | 100 - 240 VAC; 50/60 Hz; 1A |
| Power Consumption | 17" LCD 120V/21W; 230V/24W |
| Environment | Operating Temp. 0-40C Storage Temp. -20-60C Humidity 0-80% RH, Non-condensing |
| Physical Properties | Housing Metal+Plastic Weight 17" LCD 12.30 kg Dimensions ( D x W x H ) 53.83x48.00x4.40cm |
| Note | * The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders. |
