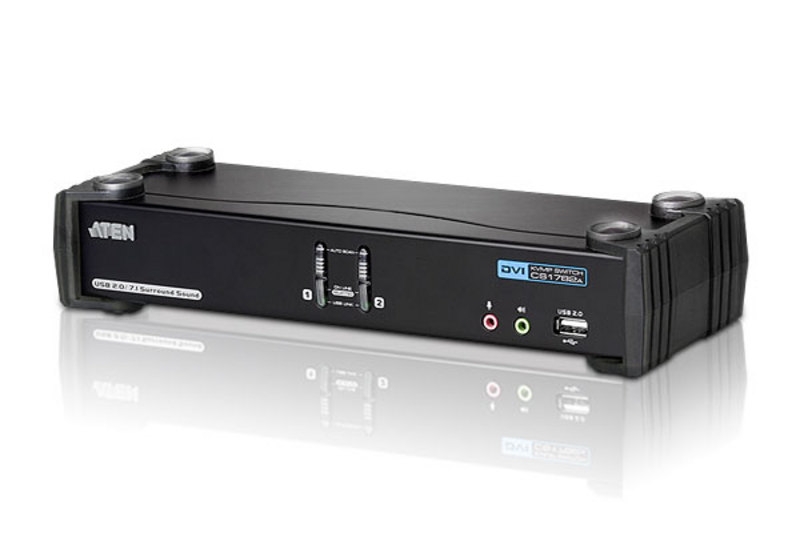

Aten 2 Port Usb Dual-Link Dvi Kvmp Switch With 7.1 Audio And Usb 2.0 Hub - Cables Included Cs1782A-At-U
Package Contents
- 1x CS1782A USB DVI Dual Link KVMP™ Switch
- 2x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
- 2x 7.1 Channel Surround Sound Cable (1.8m/6ft)
- 1x Power Adapter
- 1x User Instructions
- 2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio
- One USB console controls two computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 7.1 channel surround sound systems
- Computer selection via font panel pushbuttons, hotkeys, and mouse NEW!
- Multiplatform support – Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own
Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse
Connectors
Console Ports 2 x USB Type A Female (rear panel)
1 x DVI-I Female (White)
1 x USB Type A Female (rear panel)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
1 x 3.5mm Audio Jack Female (Blue)
1 x 3.5mm Audio Jack Female (Gray)
1 x 3.5mm Audio Jack Female (Black)
1 x 3.5mm Audio Jack Female (Orange)
2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel)
KVM Ports 2 x USB Type B Female
2 x DVI-I Female (White)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Blue)
2 x 3.5mm Audio Jack Female (Gray)
2 x 3.5mm Audio Jack Female (Black)
2 x 3.5mm Audio Jack Female (Orange)
2 x 3.5mm Audio Jack Female (Pink)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Power Selected 2 x Pushbutton
LEDs
USB Link 2 (Green)
On Line /Selected 2 (Orange)
Emulation
Keyboard / Mouse USB
Video DVI Dual Link: 2560 x 1600 @ 60Hz;
DVI Single Link: 1920 x 1200 @ 60Hz
Scan Interval 1–99 seconds (default: 5 secs)
Power Consumption DC5.3V:3.3W:41BTU
Environmental
Operating Temperature 0 -50°C
Storage Temperature -20-60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.90 kg ( 1.98 lb )
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
