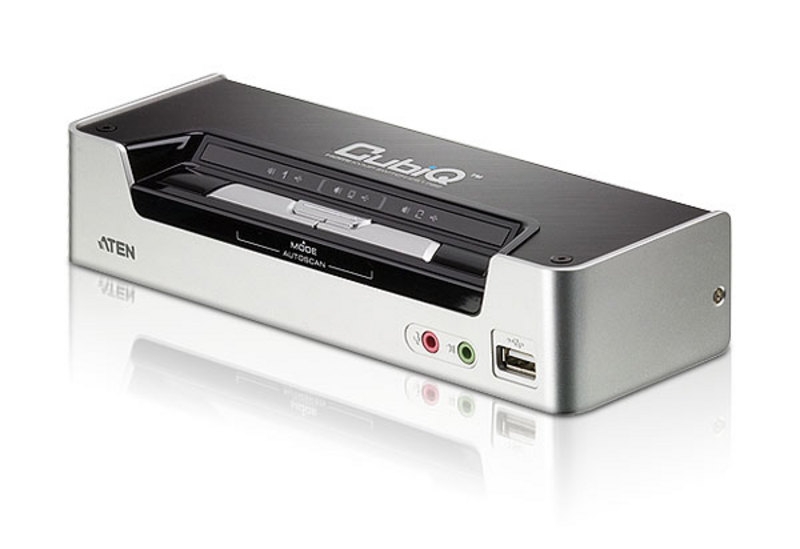

Aten Desktop Kvmp Switch 2 Port Single Display Hdmi W/ Dolby Hd Audio, 2x Custom Kvm Cables Included, 2x USB Port, Selection Via Front Panel CS1792-AT-U
With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Computer Connections 2
Port Selection Hotkey, Pushbutton
Connectors
Console Ports 2 x USB Type A Female (rear panel)
1 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports 2 x USB Type B Female
2 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green)
2 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade 1 x 3.5 mm Audio Jack Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected 3 x Pushbutton
LEDs
Audio 3 (Green)
KVM 3 (Orange)
USB 3 (Green)
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval 1-99 seconds (default: 5 sec.)
Power Consumption DC5.3V:5.35W:42BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.42 kg ( 0.93 lb )
Dimensions (L x W x H) 20.63 x 7.24 x 4.40 cm
(8.12 x 2.85 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
