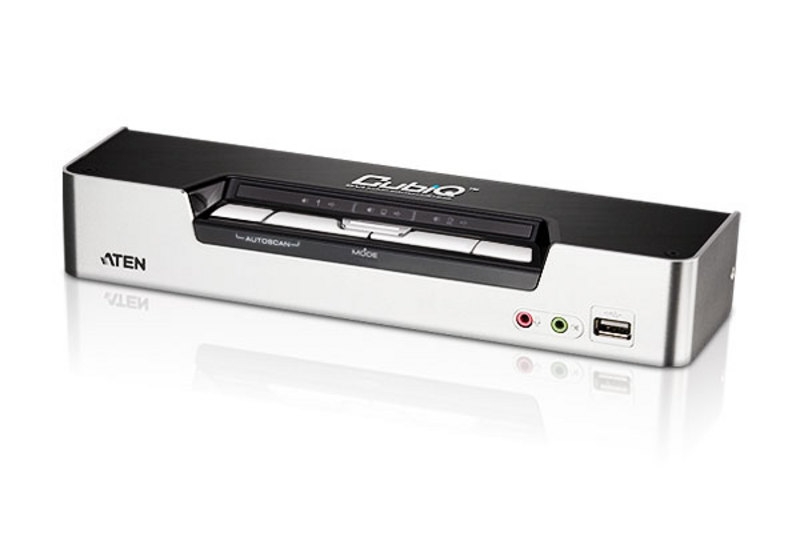

Aten Desktop Kvmp Switch 4 Port Single Display Hdmi W/ Dolby Hd Audio, 4x Custom Kvm Cables Included, 2x USB Port, Selection Via Front Panel CS1794-AT-U
With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Computer Connections 4
Port Selection Hotkey, Pushbutton
Connectors
Console Ports 2 x USB Type A Female (rear panel)
1 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports 4 x USB Type B Female
4 x HDMI Female (Black)
4 x 3.5 mm Audio Jack Female (Green)
4 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade 1 x 3.5 mm Audio Jack Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected 5 x Pushbutton
LEDs
Audio 5 (Green)
KVM 5 (Orange)
USB 5 (Green)
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval 1-99 seconds (default: 5 sec.)
Power Consumption DC5.3V:3.62W:43BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.53 kg ( 1.17 lb )
Dimensions (L x W x H) 26.23 x 7.68 x 4.40 cm
(10.33 x 3.02 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
