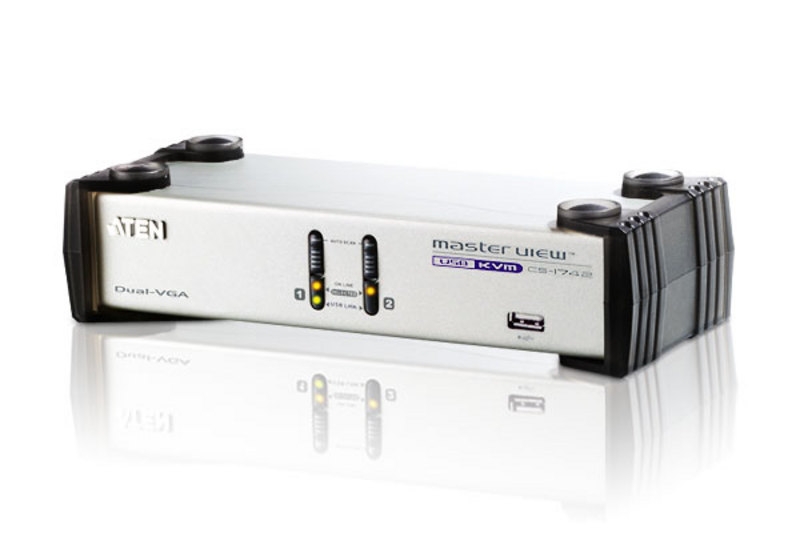

Aten Cs-1742 2 Port Dual View Kvm Switch/ 2 Vga Out
No Longer Available
2 Port Dual-View KVM Switch
The Master View Dual-View CS-1742 USB KVM Switch brings dualhead video
functionality to ATEN's USB KVM switch technology. Now, two (CS-1742) dual head
computers can be accessed and controlled from a single console that consists of
a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. In
addition, the CS-1742 incorporates a two port USB hub that allows each of the
computers to share any USB peripherals connected to the hub.
Patent NO. : DE 202004004227.4 (German) ,
CN ZL 02301203.X (China)
Features :
2 Port USB Hub
Allows one keyboard, mouse speaker, mic and two displays to control two dual
display computers
Integrated USB Hub - one USB port at front for convenient link of flash drive or
digital camera
Multiplatform compatibility MAC, SUN, PC(Windows, Linux and most others)
Bidirectional switching and flexible interoperatibility; switch permits
independent PC, independent peripheral, and independent audio function,
regardless of KVM Swithc focus
Buzzer ON/OFF via hotkey
Supports 2048 x 1536 maximum display resolution
Programmable hotkey operations
Firmware upgradeable
Package Content :
1 CS-1742 USB KVM Switch
2 CS Custom Audio/Video Cables
2 CS Custom USB/Video Cables
1 Firmware Upgrade Cable
1 User Manual
1 Quick Start Guide
Details:
Aten – 2-Port USB Dual-View KVMP Switch
CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.
Specifications:
Computer Connections | 2 | ||
Port Selection | Hotkeys, Pushbutton | ||
USB Port/ Audio Port Selection | Hotkey | ||
Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
Video | 2 x HDB-15 Female (Blue) | ||
Mouse | 1 x USB Type A Female (White) | ||
Speaker | 1 x Mini Stereo Jack Female (Green) | ||
Microphone | 1 x Mini Stereo Jack Female (Pink) | ||
KVM Ports | Speaker/Microphone | 2 x SPHD-15 Male (Yellow) | |
Video1 | |||
Keyboard/Mouse | 2 x SPHD-15 Female (Green) | ||
Video2 | |||
USB Hub | 2 x USB Type A Female (White) | ||
F/W upgrade | 1 x RJ11 Female (Black) | ||
Power | 1 x DC Jack (Black) | ||
Switches | Port | 2 x Pushbutton | |
LEDs | On Line / Selected | 2 (Orange) | |
USB Link | 2 (Green) | ||
Emulation | Keyboard/Mouse | USB | |
Video | 2048 x 1536; DDC2B | ||
Scan Interval | 1~99 seconds | ||
Power Consumption | DC5V, 1.25W | ||
Environment | Operating Temp. | 0~50°C | |
Storage Temp. | -20~60°C | ||
Humidity | 0~80% RH, Non-condensing | ||
Physical Properties | Housing | Metal | |
Weight | 0.82 kg | ||
Dimensions ( L x W x H ) | 21.00 x 8.70 x 5.50 cm |
Package Contents
- 1 x 2-Port USB Dual-View KVMP™ Switch
- 2 x KVM Cables (Audio/Video)
- 2 x KVM Cables (USB/Video)
- 1 x USB-to-PS/2 Converter
- 1 x Firmware Upgrade Cable
- 1 x User Instructions
